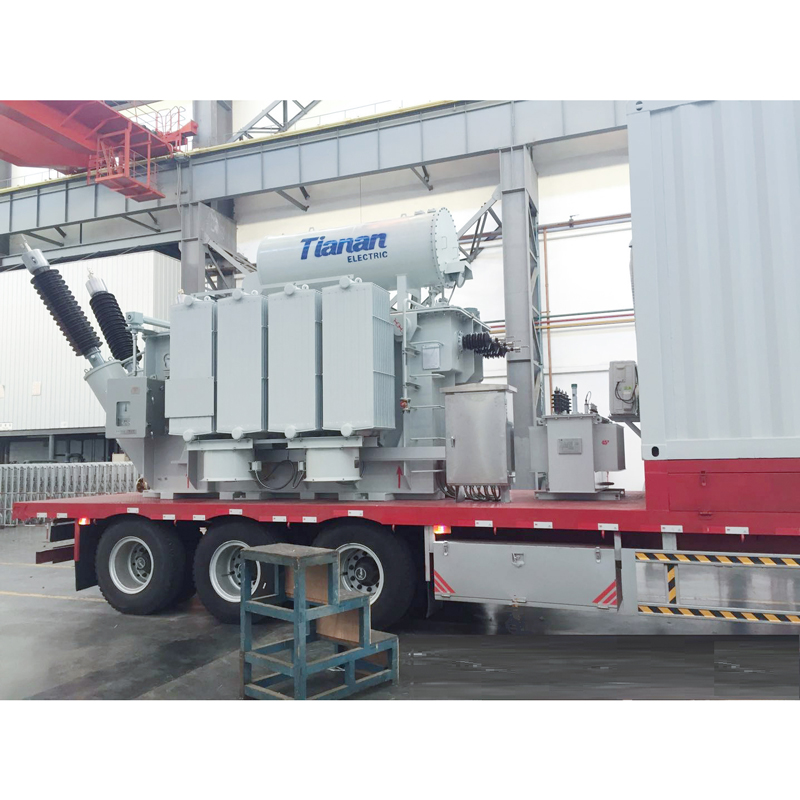

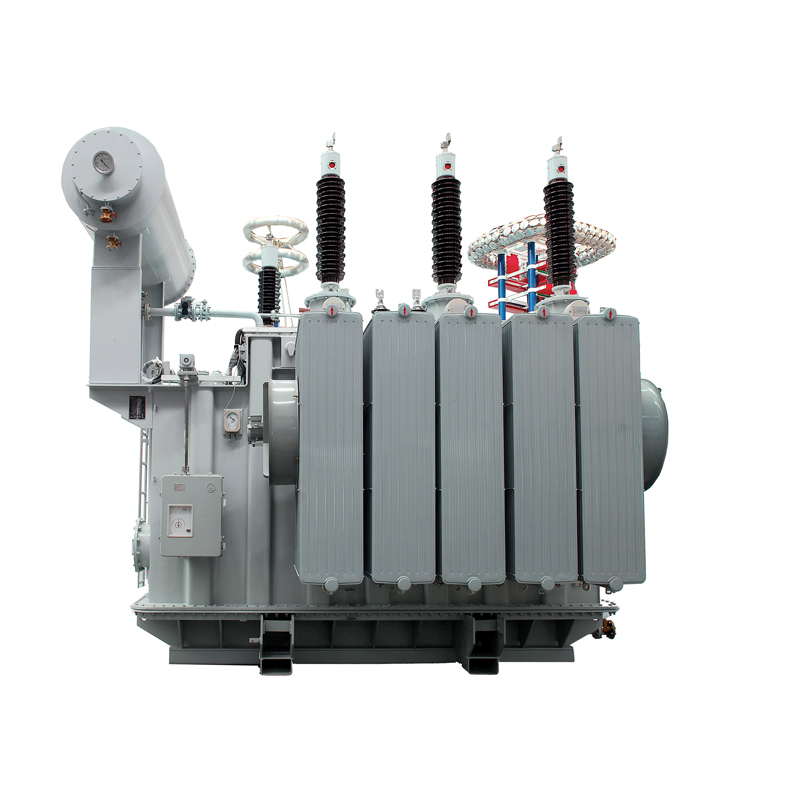

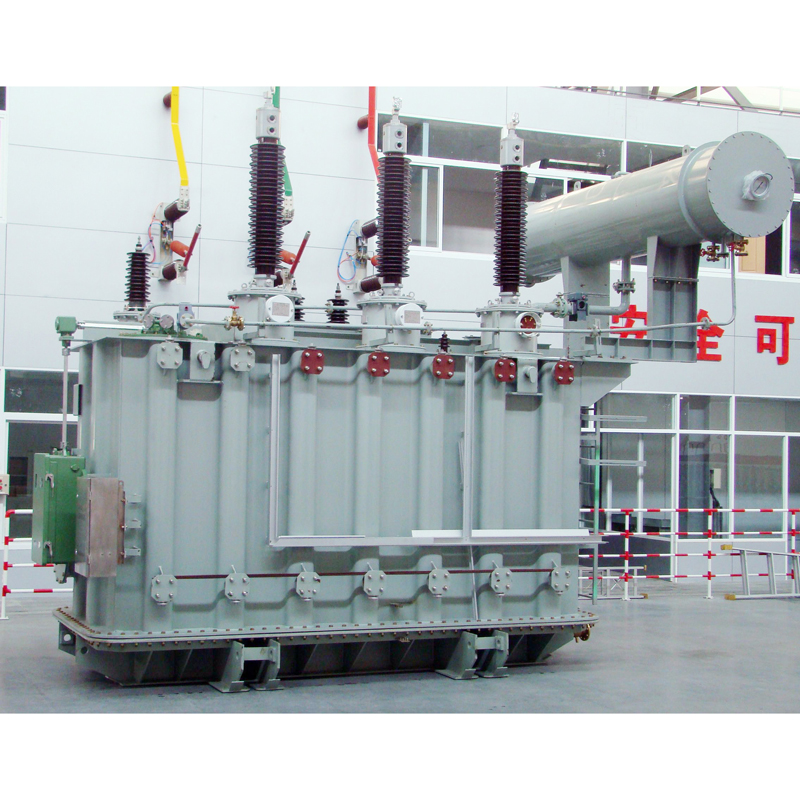

66 -110kV Oil Immersed Type Power Transformer

General
The design and technology of 110KV Transformer in Tianan(group) are coming by summarizing and re-exploitation based on multifold and advanced technique. We combined the transformer production and design experiences in our company, the reliability and performance standard are all achieved international advanced level. By the way of constantly summarizing and making perfect, the product have been formed a series production which have the Tianan characteristic, it possesses: low losses 、low noise、low partial discharge、strong anti-short-circuit ability、high impedance and fully sealed, we also take special leakage-proof measures. The characteristic of these transformers can be concluded as follows.

Standard:
IEC, ANSI, IEEE, GOST, GB etc.

product details

Product Features

● Low loss

◆ Electrical calculation by sophisticated computer programs, combine electrical shielding and magnetic circuit technology.

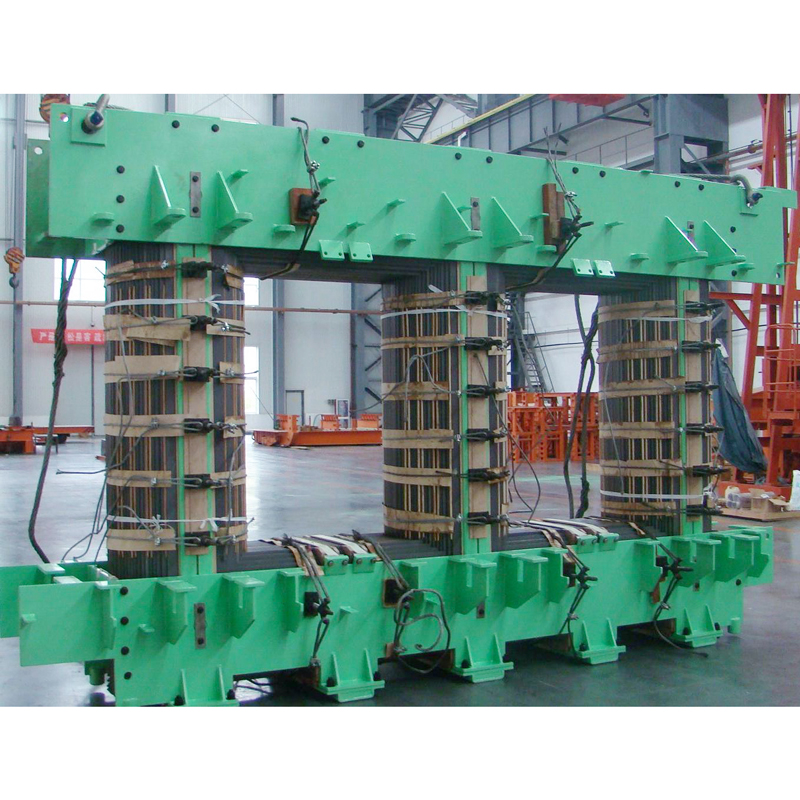

◆ The core is made of cold rolled, grain orientation high magnetic silicon steel, to reduce the load loss and no-load current.

● Low partial discharge

◆ HV lead adopts specially molded insulation parts which effectively ensure the insulation strength and reduces partial discharge.

● High strength

◆ The tank can withstand the vacuum test and positive pressure test.

◆ Omni directional location between the core and the tank to guarantee the horizontal position during transportation and operation.

● Low Noise

◆ The step lapped joints of the core laminations reduce the additional losses arising in the corner portions, reduce the load current and electromagnetic noise.

◆ Reduce of the flux density and increase the shock absorbing measures at design to reduce the noise.

● Maintenance-free

◆ Adopts the bell type tank and the international leading technology, ensure 30 years durability，and maintenance-free operation.

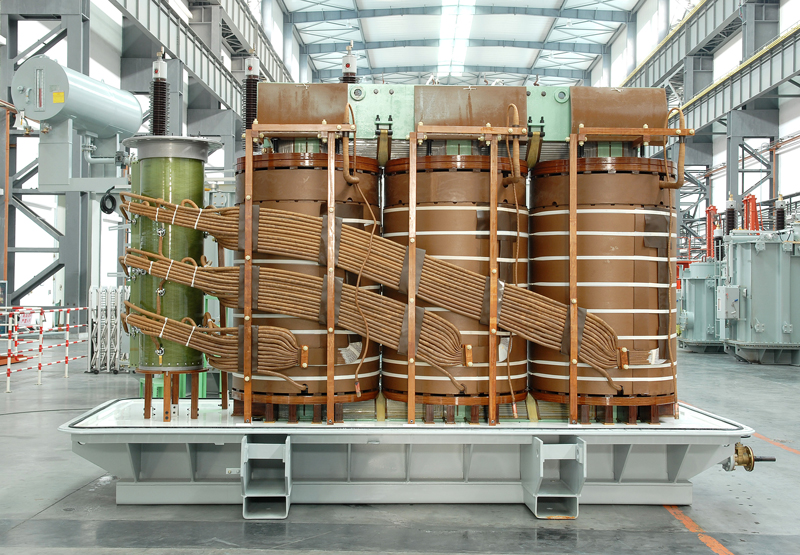

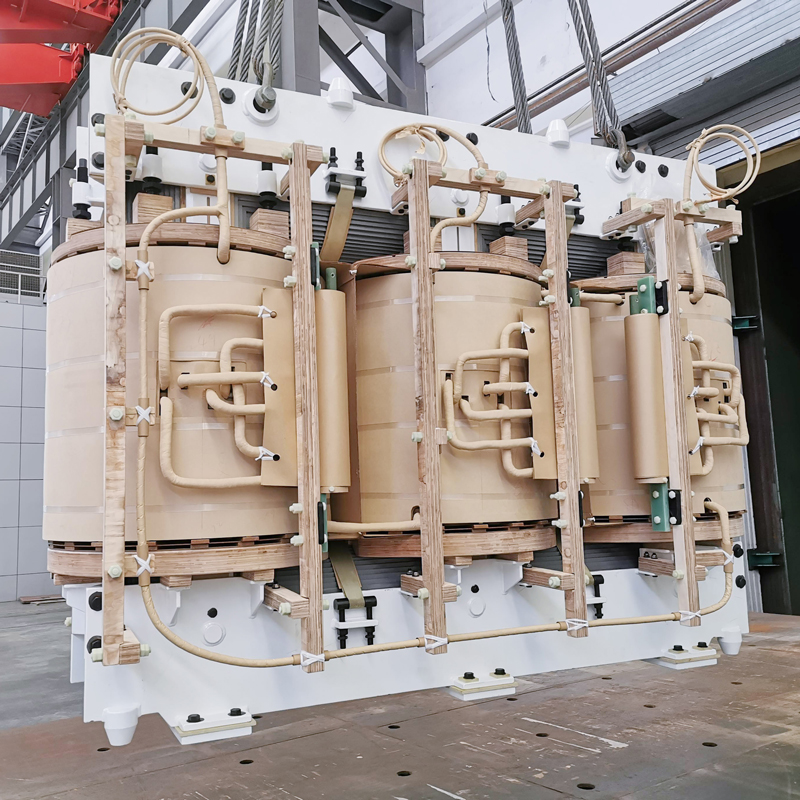

Transformer body assembly

Date Sheet of Typical Products

The energy efficiency level of 66 kV oil-immersed three-phase double-winding

no-load tap-changing power transformer

Rated capacity kVA	Level Ⅰ		Level Ⅱ		Level Ⅲ		short circuit impedance %
Rated capacity kVA	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	short circuit impedance %
3150	2.2	20.7	2.6	20.7	3.2	21.9	8
4000	2.6	24.6	3.1	24.6	3.8	25.9
5000	3.1	27.6	3.7	27.6	4.6	29.2
6300	4.0	30.8	4.7	30.8	5.8	32.5	9
8000	4.9	36.5	5.8	36.5	7.1	38.5
10000	5.8	43.0	6.8	43.0	8.4	45.4
12500	6.8	51.1	8.1	51.1	9.9	54.0
16000	8.3	62.8	9.8	62.8	12.0	66.3
20000	9.7	76.1	11.4	76.1	14.1	80.4
25000	11.4	90.0	13.5	90.0	16.6	95.0
31500	13.5	108.0	16.0	108.0	19.7	114.0
40000	16.2	126.9	19.1	126.9	23.5	134.0
50000	19.4	150.3	22.9	150.3	28.2	158.7
63000	22.9	178.2	27.0	178.2	33.3	188.1

The energy efficiency level of 66 kV oil-immersed three-phase double-winding OLTC power transformer

Rated capacity kVA	Level Ⅰ		Level Ⅱ		Level Ⅲ		short circuit impedance %
Rated capacity kVA	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	short circuit impedance %
6300	4.4	30.8	5.2	30.8	6.4	32.5	9
8000	5.3	36.5	6.2	36.5	7.7	38.5
10000	6.2	43.0	7.3	43.0	9.0	45.4
12500	7.4	51.1	8.7	51.1	10.7	54.0
16000	8.9	62.8	10.5	62.8	12.9	66.3
20000	10.6	76.1	12.5	76.1	15.4	80.4
25000	12.5	90.0	14.8	90.0	18.2	95.0
31500	14.8	108.0	17.5	108.0	21.5	114.0
40000	17.7	126.9	20.9	126.9	25.8	134.0
50000	20.9	150.3	24.7	150.3	30.4	158.7
63000	24.7	178.2	29.2	178.2	35.9	188.1

The energy efficiency level of 110 kV oil-immersed three-phase double-winding no-load tap-changing power transformer

Rated capacity kVA	Level Ⅰ		Level Ⅱ		Level Ⅲ		short circuit impedance %
Rated capacity kVA	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	short circuit impedance %
6300	4.1	32	4.8	32	5.9	33	10.5
8000	4.9	38	5.8	38	7.1	40
10000	5.8	45	6.8	45	8.4	48
12500	6.8	53	8.1	53	9.9	56
16000	8.3	65.7	9.8	65.7	12.0	69
20000	9.7	79	11.4	79	14.1	84
25000	11.4	94	13.5	94	16.6	99
31500	13.5	111	16.0	111	19.7	117
40000	16.2	133	19.1	133	23.5	141
50000	19.4	158	22.9	158	28.2	166
63000	22.9	187	27.0	187	33.3	198
75000	26.0	212	30.7	212	37.8	224	12～14
90000	29.9	245	35.4	245	43.5	258
120000	37.3	303	44.1	303	54.2	320
150000	44.1	359	52.1	359	64.1	379
180000	49.5	411	58.5	411	72.0	434

The energy efficiency level of 110 kV oil-immersed three-phase double-winding LV-35kV no-load tap-changing power transformer

Rated capacity kVA	Level Ⅰ		Level Ⅱ		Level Ⅲ		short circuit impedance %
Rated capacity kVA	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	short circuit impedance %
6300	4.4	33	5.2	33	6.4	35	10.5
8000	5.3	40	6.2	40	7.7	42
10000	6.2	47	7.3	47	9.0	49
12500	7.2	56	8.5	56	10.5	59
16000	8.6	68	10.1	68	12.5	72
20000	10.2	85	12.0	85	14.8	89
25000	12.1	99	14.2	99	17.5	105
31500	14.3	120	16.8	120	20.7	126
40000	16.9	140	20.0	140	24.6	147
50000	20.3	174	24.0	174	29.5	183
63000	24.0	209	28.3	209	34.9	220
6300	4.4	33	5.2	33	6.4	35
8000	5.3	40	6.2	40	7.7	42
10000	6.2	47	7.3	47	9.0	49

The energy efficiency level of 110 kV oil-immersed three-phase three-winding no-load tap-changing power transformer

Rated capacity kVA	Level Ⅰ		Level Ⅱ		Level Ⅲ		short circuit impedance %
Rated capacity kVA	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	Set up voltage	Set down voltage
6300	4.9	40	5.8	40	7.1	42	H-M:17.5~18.5 H-L:10.5 M-L:6.5	H-M:10.5 H-L:17.5~18.5 M-L:6.5
8000	5.8	48	6.9	48	8.5	50
10000	6.9	56	8.2	56	10.1	59
12500	8.1	67	9.6	67	11.8	70
16000	9.8	81	11.6	81	14.3	86
20000	11.6	95	13.7	95	16.9	101
25000	13.5	113	16.0	113	19.7	120
31500	16.2	134	19.1	134	23.5	142	H-M:17.5~18.5 H-L:10.5 M-L:6.5	H-M:10.5 H-L:17.5~18.5 M-L:6.5
40000	19.1	161	22.6	161	27.8	170
50000	22.9	192	27.0	192	33.3	202
63000	27.1	230	32.0	230	39.4	243
6300	4.9	40	5.8	40	7.1	42

The energy efficiency level of 110 kV oil-immersed three-phase double-winding OLTC power transformer

Rated capacity kVA	Level Ⅰ		Level Ⅱ		Level Ⅲ		short circuit impedance %
Rated capacity kVA	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	short circuit impedance %
6300	4.4	32	5.2	32	6.4	33	10.5
8000	5.3	38	6.2	38	7.7	40
10000	6.2	45	7.3	45	9.0	48
12500	7.4	53	8.7	53	10.7	56
16000	8.9	66	10.5	66	12.9	69
20000	10.6	79	12.5	79	15.4	84
25000	12.5	94	14.8	94	18.2	99
31500	14.9	111	17.6	111	21.6	117
40000	17.8	140	21.0	140	25.8	148
50000	21.0	175	24.8	175	30.6	184
63000	25.0	209	29.5	209	36.3	220

The energy efficiency level of 110 kV oil-immersed three-phase three-winding OLTC power transformer

Rated capacity kVA	Level Ⅰ		Level Ⅱ		Level Ⅲ		short circuit impedance %
Rated capacity kVA	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	No-Load Loss kW	Load Loss (75℃) kW	short circuit impedance %
6300	5.3	40	6.2	40	7.7	42	H-M:10.5 H-L:17.5~18.5 M-L:6.5
8000	6.3	48	7.5	48	9.2	50
10000	7.5	56	8.8	56	10.9	59
12500	8.9	67	10.5	67	12.9	70
16000	10.6	81	12.5	81	15.4	86
20000	12.5	95	14.8	95	18.2	101
25000	14.9	113	17.6	113	21.6	120
31500	17.7	134	20.9	134	25.7	142
40000	21.2	161	25.0	161	30.8	170
50000	25.0	192	29.6	192	36.4	202
63000	29.8	230	35.2	230	43.3	243
