Picking the right Mv Switchgear for your project isn’t just a checklist item – it’s actually pretty important. This gear plays a huge role in how you distribute electricity, making sure everything runs smoothly and safely. But honestly, choosing the right one can sometimes feel kinda tricky. There are a bunch of factors to think about, like voltage needs and what your project really calls for.
Getting a good handle on what MV Switchgear does is key. There are different styles and features out there, each suited for different situations. It’s worth taking the time to compare your options carefully. Brands like Schneider Electric are known for their reliable solutions—they really know their stuff. But hey, don’t forget that sometimes a less-known brand might actually be a better fit for your specific project.
Think about what you’re trying to achieve and what your limits are. Can a standard switchgear do the job, or do you need something custom-made? Asking yourself these kinds of questions can help you make smarter choices. Every project is pretty unique, so it’s all about what works best for you. When you focus on your particular needs, you’re more likely to make a decision that pays off in the long run.

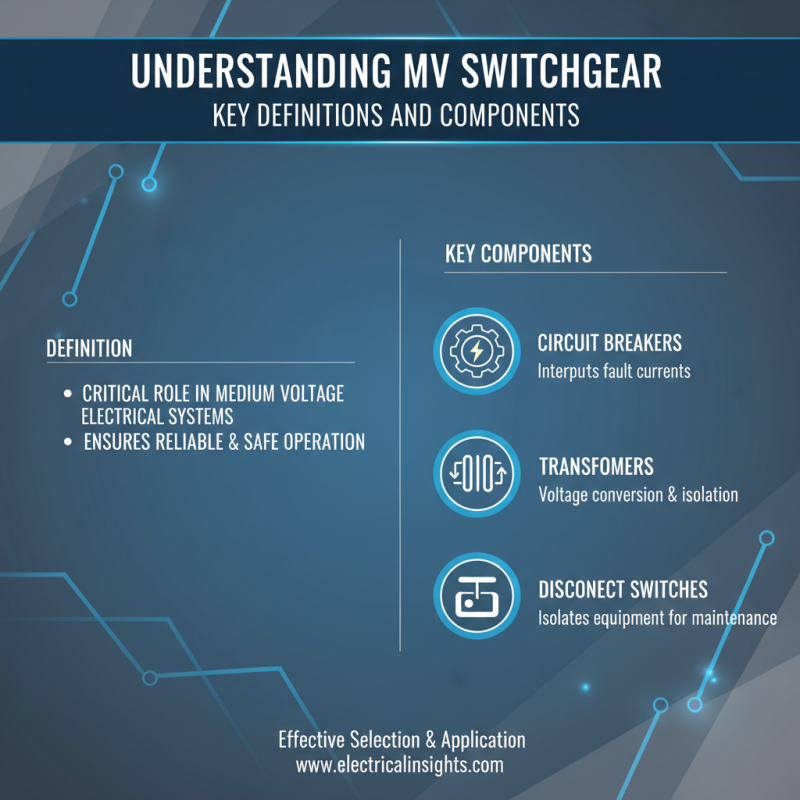

Understanding MV Switchgear: Key Definitions and Components
MV switchgear plays a critical role in medium voltage Electrical Systems. Understanding its components is essential for effective selection and application. Key components include circuit breakers, transformers, and disconnect switches. Each component fulfills a unique function, ensuring reliable and safe operation of the system.
Circuit breakers protect against overloads and short circuits. They disconnect power when anomalies occur. Transformers step down voltage for distribution. Disconnect switches allow maintenance personnel to isolate equipment safely. Knowing how these components interact helps in designing a tailored switchgear solution.
While these components are crucial, their correct configuration can be challenging. A poorly designed system can lead to operational issues. It's vital to assess specific project needs thoroughly. Industry standards and safety regulations must guide these choices. Balancing efficiency with compliance often requires careful planning and expert input.
Types of MV Switchgear: A Comparative Overview
When considering medium voltage (MV) switchgear, understanding the different types is crucial for your project. There are several options available, each with distinct characteristics. One common type is metal-enclosed switchgear. It offers excellent protection and compact design. This configuration minimizes the risk of environmental damage.
Another option is gas-insulated switchgear (GIS). GIS is known for its high reliability and space efficiency. It uses gas as an insulating medium, reducing the footprint. However, its initial installation cost can be higher than other types. It's vital to assess your budget carefully before making a decision.
Hybrid switchgear combines the benefits of both technologies. It provides flexibility and improved safety. However, it’s relatively new to the market, and some may be hesitant to adopt it. Evaluating the lifespan and maintenance needs is important when choosing a design. Proper research can help ensure the right fit for your needs. Don’t overlook the role of Lv Switchgear, as it can complement MV systems effectively. Each type has its pros and cons, and an informed choice can make a big difference in project success.
Assessing Project Requirements: Voltage, Current, and Configuration
Choosing the right medium voltage (MV) switchgear involves a careful assessment of your project's specific requirements. Voltage ratings are crucial. Most industrial applications require switchgear that operates between 1 kV and 36 kV. Ensuring compatibility with your project's voltage requirements is critical to avoid operational failures or safety hazards.
Current rating is another important factor. An analysis by the International Electrotechnical Commission (IEC) suggests that MV switchgear should handle currents ranging from 630 A to 3,200 A in most settings. This consideration directly impacts the capacity of your electrical system. Assessing peak and continuous loads will inform your specifications.
Tips: Match your switchgear’s current rating closely with your load profile. Oversizing can lead to increased costs without delivering added functionality.
Configuration also plays a role. Common arrangements include single bus, double bus, and ring configurations. Each has unique advantages and trade-offs related to maintenance and reliability. It's valuable to tailor the configuration based on space constraints and operational priorities.
Tips: Always consult engineering standards when selecting configurations to optimize for safety and efficiency. Evaluate the operational history of similar projects in your sector for insights on best practices.
Evaluating Operational Environment and Safety Standards
When selecting Mv Switchgear, understanding the operational environment is crucial. Conditions like temperature, humidity, and dust levels directly impact performance. If the area is prone to moisture, choose switchgear with adequate sealing. Dry environments may allow for lighter enclosures, but consider local pest issues, too.
Safety standards are non-negotiable when it comes to MV switchgear. Different applications have various regulations. Familiarize yourself with local codes and industry guidelines. Some environments may require additional protective measures. Assess the risk of electrical hazards and implement features to mitigate them. Consulting with safety experts can provide valuable insights.
Evaluating the installation space is also essential. Ensure that there's enough room for maintenance and operation. A cramped space can lead to challenges down the line. Ventilation is another factor. Poor airflow can affect equipment life and performance. Reflecting on these details can help shape a smarter selection process.
How to Choose the Right MV Switchgear for Your Project? - Evaluating Operational Environment and Safety Standards
| Evaluation Criteria | Considerations | Recommended Standards | Operational Environment |
| Voltage Rating | Identify system voltage requirements. | IEC 62271-1 | Indoor or outdoor usage. |
| Current Rating | Assess load demands and short-circuit levels. | IEC 62271-200 | Ambient temperature range. |
| Safety Standards | Compliance with safety protocols. | ANSI/IEEE, IEC Standards | Presence of corrosive elements. |
| Installation Type | Choose between prefabricated or site-assembled. | Relevant local codes | Space and installation layout. |
| Maintenance Needs | Evaluate accessibility and upkeep requirements. | Manufacturer guidelines | Frequency of operation. |
Selecting the Right Manufacturer: Factors to Consider
When selecting the right manufacturer for medium voltage (MV) switchgear, several critical factors should be evaluated. Manufacturer experience is paramount. According to industry reports, companies with over 20 years in the field tend to produce systems with higher reliability. It’s essential to consider their track record on safety and product performance. Data shows that reliability issues can lead to downtime, costing companies an estimated $300,000 per hour.
Certifications play a vital role as well. Look for manufacturers with international standards certifications like ISO 9001 and IEC 62271. These ensure that products meet quality benchmarks. A study revealed that equipment from certified manufacturers has a 30% lower failure rate compared to non-certified options. Supplier support and customer service are also crucial, as complex projects often require ongoing assistance. Manufacturers offering comprehensive service packages tend to forge better long-term partnerships.
Evaluating the manufacturer's financial stability is worth consideration. Companies with solid financial health are more likely to invest in R&D. This results in better technology and innovative designs. However, some manufacturers might present themselves as more stable than they are. Verifying financial records can prevent future disruptions to your supply chain. This layered approach to selecting a manufacturer can significantly impact the success of your MV switchgear project.
How to Choose the Right MV Switchgear for Your Project?
Budgeting and Cost Analysis for MV Switchgear Selection
When selecting MV switchgear for your project, budgeting is crucial. The costs can vary significantly based on specifications, features, and installation requirements. Many factors contribute to the final price. For instance, the complexity of the setup can increase costs dramatically. It's essential to assess whether your project needs a standard or a tailored solution.
Consider long-term operating costs along with the upfront expenses. Low initial costs might seem attractive, but they can lead to higher maintenance fees later. Analyze the reliability of 33kv Switchgear options before making a decision. Look for technical specifications that align with your budget and reliability expectations. Sometimes, investing more upfront can yield substantial savings in the long run.
Create a detailed cost analysis document. Include potential risks and unexpected expenses. Having a clear picture of your financial framework will help avoid issues later. Engage with professionals to gather insights on cost-effective solutions. Learning from past projects can reveal pitfalls to avoid. Embrace this opportunity to refine your budgeting strategy for future projects.
Installation and Maintenance Considerations for Long-Term Performance
When selecting MV switchgear for a project, installation and maintenance are critical factors. Proper installation ensures the switchgear functions optimally. It's essential to adhere to the manufacturer's guidelines and industry standards. Incorrect installation can lead to failures that currently plague many systems. A detailed site assessment is vital. This helps identify potential challenges that may arise during installation.
Regular maintenance is necessary for long-term performance. Keeping the equipment clean and conducting routine inspections can prevent unexpected outages. Sometimes, components may wear down faster than anticipated. Failing to address these issues can lead to costly repairs. Implementing a proactive maintenance schedule is advisable. Include routine tests to assess the performance of wiring and connections.
Training personnel on proper handling is crucial. Not all operators are familiar with the intricacies of Transformer Switchgear. Misunderstandings can lead to improper operations. Investing in training can pay off in lower maintenance costs and fewer accidents. Long-term, this approach enhances the reliability and efficiency of the equipment. Lack of attention to these aspects often results in missed opportunities for improvement.
Maximizing Efficiency and Safety in Electrical Networks: The Role of XGTD9-12 Fixed Type Air Insulation Metal-enclosed Switchgear
The need for enhanced efficiency and safety in electrical networks has never been more critical, given the increasing demands of modern infrastructure and the complexity of electrical systems. The XGTD9-12 Fixed Type Air Insulation Metal-enclosed Switchgear stands out as a robust solution engineered to meet these requirements. This three-phase indoor switchgear is designed to operate within 10kV three-phase AC 50Hz single bus systems, making it ideal for various applications, including airports, subways, and large-scale buildings.
Equipped with advanced components such as the FT8-12D indoor HVAC vacuum load switch, FT8-12RD indoor HVAC vacuum load switch-fuse combination, and VT28 indoor HV AC vacuum circuit breaker, the XGTD9-12 series excels in controlling, protecting, and monitoring Electric Power lines. Reports indicate that the integration of metal-enclosed switchgear can enhance system reliability and minimize operational risks, critical factors in reducing downtime and maintenance costs. The air-insulated construction not only provides a safe environment for operatives but also contributes to the overall efficiency of power distribution networks.
In a world where energy demand is projected to rise dramatically, ensuring the safety and reliability of electrical systems is paramount. The XGTD9-12 series switchgear plays a pivotal role in achieving these objectives by facilitating efficient energy distribution and effectively managing electrical loads, crucial for the continued advancement of industry and infrastructure. Industry forecasts suggest that investments in modern switchgear technologies will substantially reduce system failures and improve electricity supply stability, thus reinforcing the importance of solutions like these in future-proofing electrical grids.
FAQS
: Most industrial applications require switchgear operating between 1 kV and 36 kV.
Current ratings impact the electrical system's capacity, often ranging from 630 A to 3,200 A.
Match the switchgear's current rating closely with your load profile to control costs and enhance functionality.
Common configurations include single bus, double bus, and ring arrangements, each with specific benefits and trade-offs.
Conditions like temperature and humidity affect switchgear performance and longevity.
Familiarize yourself with local codes and consult safety experts to assess risks and necessary protective measures.
Evaluate if there is enough room for maintenance and ensure proper ventilation to enhance equipment lifespan.
Low initial costs may lead to higher maintenance fees. Consider total cost of ownership for smarter budgeting.
Include potential risks and unexpected expenses to gain a clear financial picture for your project.
Learning from previous experiences can help identify pitfalls and refine your approach for future projects.
Conclusion
Choosing the right MV switchgear for your project involves a comprehensive understanding of its key definitions and components. It is essential to evaluate different types of MV switchgear, weighing their advantages and disadvantages to determine the best fit for your specific requirements. Critical factors include assessing voltage and current ratings, configuration needs, and understanding the operational environment along with relevant safety standards.
Moreover, selecting a reputable manufacturer based on their experience and reliability is crucial. Budgeting plays a significant role in MV switchgear selection, necessitating a detailed cost analysis. Additionally, proper installation and ongoing maintenance are vital for ensuring the long-term performance of the switchgear, ultimately contributing to the project's overall success and operational efficiency.
