GTD9-12D Indoor High Voltage AC Isolating Switch
Detail introduction
This product is suitable for three-phase AC 50/60HZ, 12KV no-load current situations. When isolation, maintenance or repair of the circuit is required, the circuit can be disconnected or closed to achieve safe isolation and ensure the safety of operators and equipment. The layout, appearance, and dimensions of this isolating switch are completely consistent with VTD9-12D and FTD9-12D vacuum switches. It is a typical through wall isolating switch that is easy to expand and combine in switchgear.
IEC62271-1 High voltage switchgear and control equipment - Part 1: Common technical requirements for AC switchgear and control equipment
IEC62271-102 High voltage switchgear and control equipment - Part 102: AC isolating switches and grounding switches
GB/T1985 High voltage AC isolating switch and grounding switch
GB/T11022 Common Technical Requirements for High Voltage Switchgear and Control Equipment Standards
DL/T486 High voltage AC isolating switch and grounding switch
Service Conditions
a. Environmental temperature:- 25℃ ~ +40℃;
b. Altitude: ≤ 1000m;
c. Relative humidity: Daily average relative humidity ≤ 95%
Monthly average relative humidity ≤ 90%
Daily average vapor pressure ≤ 2.2x10-3 MPa
Monthly average vapor pressure ≤1.8x10-3MPa;
d. Seismic grade: seismic intensity ≤ 8;
e. The applicable location is free from dripping water, flammable and explosive hazards, chemical corrosive gases, and severe vibrations.
※Note: When the usage environment deviates from normal usage conditions, please consult with our company to determine.
Technical Date
|
Item |
Unit |
Parameter |
|
| Rated frequency |
Hz |
50/60 |
|
| Rated voltage |
kV |
12 |
|
| Rated power frequency withstand voltage (1 minute, r.m.s) | Phase to phase and phase to ground |
KV |
42 |
| Isolation fracture |
48 |
||
| Control and auxiliary circuits |
2 |
||
| Rated lightning impulse withstand voltage (peak) | Phase to phase and phase to ground |
kV |
75 |
| Isolation fracture |
85 |
||
| Rated current |
A |
630, 1250 |
|
| Rated short-circuit breaking current (r.m.s) |
kA |
/ |
|
| Rated short-time withstand current and time |
kA/s |
20/4, 25/4, 31.5/4 |
|
| Rated peak withstand current |
kA |
50, 63, 80 |
|
| Rated short-circuit making current (peak) |
kA |
/ |
|
| Rated breaking current of single/back-to-back capacitor group |
A |
/ |
|
| Rated capacitor bank making current |
kA |
/ |
|
| Rated handover (transfer) current |
A |
/ |
|
| Mechanical life |
Times |
3000 |
|
| Main circuit resistance of each phase |
mΩ |
≤ 45, ≤ 40 |
|
| Clearance between open contacts |
mm |
125 ± 1 |
|
| Contacting travel |
mm |
/ |
|
| Contact closing bounce time |
mm |
/ | |
| Three-phase asynchronous closing and opening |
ms |
/ |
|
| Average opening speed (contact just opened - 6mm) |
m/s |
/ | |
| Average closing speed ( 6mm - contact just opened) |
m/s |
/ |
|
| Rated contact pressure |
N |
/ | |
| Opening time (at rated voltage) |
ms |
/ |
|
| Closing time (at rated voltage) |
ms |
/ | |
| Rated operating sequence |
/ |
||
Typical outline dimensions (fit) and structural diagram
| Rated current (A) |
630 |
1250 |
| Rated short-time withstand current (kA, 4s) |
25 |
|
| Inter-phase distance (mm) |
210 |
|

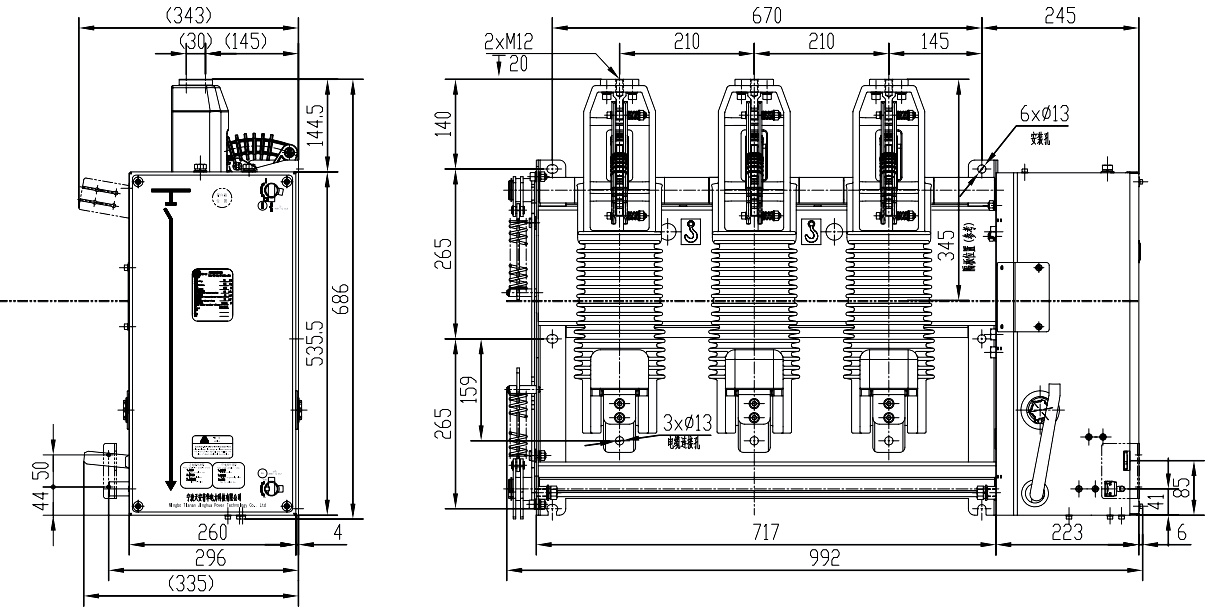

GTD9-12 (inter-phase distance P=210) outline dimension drawing of isolating switch
(This diagram shows the product in the upright position, and the product can also be installed in an inverted position.)
| Rated current (A) |
630 |
1250 |
| Rated short-time withstand current (kA, 4s) |
25 |
|
| Inter phase distance (mm) |
210 |
|

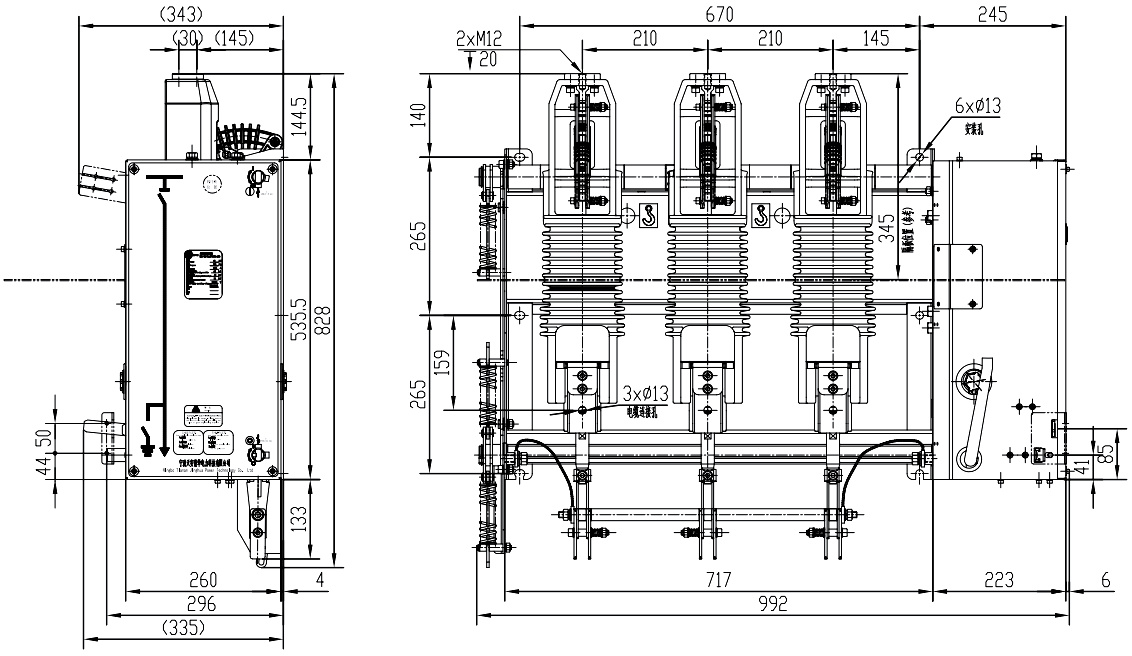

GTD9-12D (inter-phase distance P=210) outline dimension drawing of isolating switch
(This diagram shows the product in the upright position, and the product can also be installed in an inverted position.)
