How Solar EPCs Specify Step-Up Transformers for 100MW+ PV Plants: Vector Group, Impedance Voltage, and Neutral Grounding Resistor Compliance

Vector Group Selection: Dy11 vs YNd11 vs YNyn0 for PV Plants

Vector group is the first transformer parameter the procurement team must specify, because it determines the winding configuration (delta or wye) on each side and the phase displacement angle. The IEC notation is built up as follows: the capital letter denotes the HV winding configuration (D=delta, Y=wye, YN=grounded wye), the lowercase letter denotes the LV winding configuration, and the number is the phase displacement angle in clock-face multiples of 30 degrees. Dy11 therefore means delta on the HV side, wye on the LV side, with the LV side lagging the HV side by 11×30=330 degrees (or equivalently, leading by 30 degrees).

The three vector groups that dominate solar PV step-up applications are Dy11, YNd11, and YNyn0 (sometimes with a tertiary winding, denoted YNyn0+d). The choice depends on three factors: the inverter topology on the LV side, the utility grounding requirement on the HV side, and the zero-sequence current path for ground fault protection. For a central-inverter PV plant with a grounded wye inverter bus and an effectively grounded 110kV utility grid, Dy11 is the most common choice. For a string-inverter plant with a delta inverter bus and a resonant-grounded 35kV utility grid, YNd11 is more common. For a three-winding step-up with a tertiary that supplies station service loads, YNyn0+d is the standard.

The zero-sequence current path is the subtle detail that catches first-time EPC spec writers. A Dy11 transformer blocks zero-sequence current from the LV side to the HV side (because the delta winding on the HV side presents an open circuit to zero-sequence currents). This is the desired behavior when the LV side inverter bus has its own ground fault protection — the fault current is contained on the LV side and does not propagate to the HV grid. A YNd11 transformer, by contrast, allows zero-sequence current to flow from the LV side to the HV side (because the grounded wye on the LV side is the source). This is the desired behavior when the utility grid relies on the transformer to provide ground fault current for protection coordination. The wrong vector group for the project grounding philosophy can disable the ground fault protection or cause nuisance tripping.

Impedance Voltage (uk%): Coordinating Transformer and Inverter Short-Circuit Behavior

Impedance voltage uk% is the per-unit voltage drop across the transformer at rated current on the LV side, expressed as a percentage of the rated LV voltage. It is set by the transformer designer via the winding geometry and the leakage inductance, and is one of the few parameters that procurement teams can specify within a narrow range (typically 6.5, 8, 10, 12.5, or 14 percent). The IEC standard series covers uk% in IEC 60076-1 and the test procedure in IEC 60076-2.

The functional purpose of uk% is to limit the short-circuit current on the LV side of the transformer and to coordinate with the upstream switchgear and downstream inverter. A 100MVA transformer at 35kV/110kV with uk% = 10 has a short-circuit current at the LV side of approximately 100 / (1.732 × 35 × 0.10) = 16.5kA, which is within the standard 25kA switchgear rating. If uk% is reduced to 8, the short-circuit current rises to 20.6kA; if reduced to 6.5, it rises to 25.4kA, which exceeds the 25kA standard and forces the procurement team to specify 31.5kA switchgear at higher cost.

The coordination with the inverter is the second consideration. Central inverters for utility-scale PV plants typically have a fault current contribution of 1.2 to 1.5 times rated current for the first 100–200ms after a fault, then drops to zero as the inverter's anti-islanding protection trips. The transformer uk% must be high enough that the combined short-circuit current (utility source through transformer plus inverter contribution) stays within the inverter's protective relay settings. For 100MW+ plants with central inverters, uk% 10 to 12.5 is the typical coordination point. For plants with string inverters and lower short-circuit contribution, uk% 8 to 10 is sufficient.

Neutral Grounding Resistor (NGR) Compliance: IEEE 32 / GB/T 50064

Neutral grounding is the third parameter that drives the step-up transformer specification, and it is the one most often missed by first-time solar EPC procurement teams. The decision is between direct grounding, reactor grounding, and high-resistance NGR, with the choice driven by the inverter topology and the utility grounding requirement.

For 100MW+ PV plants with central inverters at 0.8–1.5kV LV side and 35–110kV HV side, the typical arrangement is direct grounding of the HV neutral (per the utility's grounding requirement) and either ungrounded or high-resistance NGR on the LV side. The LV-side NGR limits the ground fault current to a value the central inverter can sustain without tripping — typically 100A to 400A for a 100MW plant. The NGR is sized per IEEE 32 in North American projects or GB/T 50064 in Chinese projects, with the resistance value calculated as R = V_LN / I_fault, where V_LN is the line-to-neutral voltage on the LV side and I_fault is the target ground fault current.

The Tianan green power product line (covering wind and solar plant auxiliary systems) includes NGR-equipped transformers as a standard configuration option for 100MW+ PV projects. The NGR is typically a stainless-steel grid resistor mounted in a separate outdoor enclosure adjacent to the transformer, with the resistance value, continuous current rating, and short-time current rating specified per project. Procurement teams specifying NGR-equipped transformers should also specify the NGR monitoring (Current Transformer, voltage monitor, status contact) for integration with the plant SCADA per IEC 61850.

Solar EPC Spec Sheet: 10-Element Checklist

The ten-element checklist below covers what a complete step-up transformer spec sheet must contain for a 100MW+ solar PV plant. Procurement teams that adopt this structure avoid the most common spec errors: missing MVA / voltage ratio justification, missing vector group selection, missing uk% calculation, missing NGR sizing, and missing ancillary requirements (losses, sound, taps, protection).

1. State MVA rating and voltage ratio. State the MVA rating (50MVA, 63MVA, 100MVA, 125MVA, etc.) and the HV/LV voltage ratio (e.g., 38.5kV/0.8kV, 110kV/35kV, 220kV/35kV).
2. Specify vector group. Specify the vector group per IEC 60076-1 (Dy11, YNd11, YNyn0+d, etc.). Dy11 is the most common for central-inverter PV step-up; verify against inverter topology and utility grounding.
3. Specify impedance voltage uk%. Specify uk% per IEC 60076-1. For 100MW+ PV plants, uk% 10 to 12.5 is typical; lower for short-circuit coordination, higher for voltage regulation margin.
4. Specify neutral grounding method. Specify neutral grounding per IEEE 32 / GB/T 50064: direct ground, reactor ground, or high-resistance NGR. Verify NGR current limit against inverter fault tolerance.
5. Specify temperature rise class. Specify temperature rise per IEC 60076-2: 55K/65K for oil-immersed, 80K/100K/125K for dry-type. Apply derating for ambient above 40°C or altitude above 1000m.
6. Specify losses and efficiency. Specify no-load loss (Po), load loss (Pk) at 75°C, and total loss. IEC 60076-1 Tier 1 or Tier 2 efficiency classes; for 100MW+ PV plants, Tier 1 (lowest loss) is increasingly required.
7. Specify sound level. Specify sound level per IEC 60076-10. For residential or noise-sensitive areas, require lower sound level (55dB(A) or below); for remote PV sites, standard levels apply.
8. Specify tap changer configuration. Specify on-load tap changer (OLTC) or de-energized tap changer (DETC). OLTC for grid-connected step-up with variable utility voltage; DETC for fixed-ratio applications.
9. Specify protection and monitoring. Specify protection: Buchholz relay, oil temperature indicator, winding temperature indicator, pressure relief device, sudden pressure relay. Specify monitoring: digital RTU for SCADA integration per IEC 61850.
10. Specify certification and documentation. Require type test certificates per IEC 60076, routine test certificates, and third-party certification (KEMA, CESI, CNAS) for project-specific verification.

Case Study: 100MW PV Plant in Arid Climate

The following case study illustrates how the three parameters (vector group, uk%, NGR) come together in a real 100MW PV plant specification. The plant is in an arid climate region with ambient temperatures regularly above 40°C and altitude around 1500m. The grid connection is at 110kV, with 35kV collector bus and central inverters at 0.8kV LV side.

For the main step-up transformer (100MVA, 110kV/35kV), the selected vector group is Dy11. The delta on the 110kV HV side blocks zero-sequence current from the 35kV collector bus, so any ground fault on the LV side is contained within the collector bus and does not propagate to the 110kV grid. The impedance voltage is uk% = 12.5, which limits the short-circuit current at the 35kV side to approximately 100 / (1.732 × 35 × 0.125) = 13.2kA, well within the 25kA standard switchgear rating. The NGR is sized to limit the ground fault current on the 35kV collector bus to 200A, giving a resistance of 35000 / (1.732 × 200) = 101Ω. The NGR is mounted in an outdoor enclosure adjacent to the main transformer, with current transformer monitoring integrated into the plant SCADA.

For the inverter step-up transformers (typically 2.5–3.125MVA at 35kV/0.8kV), the selected vector group is Dyn11. The delta on the 0.8kV LV side prevents zero-sequence current from the inverter from propagating to the 35kV collector bus. The uk% is set to 6.5 or 8 to coordinate with the central inverter short-circuit contribution. Temperature rise class is 55K (oil-immersed, top oil) per IEC 60076-2, with tropicalized paint and reinforced cooling for the high ambient temperature. For more details on Tianan's power transformer configuration for this case study pattern, the engineering team at Tianan can be reached through the company About Us page.

Common Pitfalls When Specifying Step-Up Transformers

Three pitfalls show up repeatedly in solar EPC step-up transformer specifications. Each is easy to avoid in the writing stage and expensive to correct in the field.

Pitfall 1: Citing only IEC 60076 without IEEE 32 or GB/T 50064

A spec that cites only IEC 60076 for the transformer leaves the neutral grounding method unspecified, which forces the supplier to choose and creates ambiguity in the NGR selection. The correct posture is to cite IEC 60076 as the primary standard, IEEE 32 (for North American projects) or GB/T 50064 (for Chinese projects) as the secondary grounding standard, and to specify the NGR current limit and resistance value explicitly.

Pitfall 2: Specifying uk% too low to save cost

A spec that calls for uk% 6.5 or 8 to reduce transformer copper cost typically pushes the short-circuit current above the standard 25kA switchgear rating, forcing the procurement team to upgrade to 31.5kA switchgear at higher cost. The total project cost is higher than specifying uk% 10 or 12.5 with standard 25kA switchgear. The correct posture is to specify uk% 10 to 12.5 for 100MW+ PV plants and 8 to 10 for smaller plants, then verify the short-circuit calculation.

Pitfall 3: Missing NGR monitoring and SCADA integration

A spec that calls for an NGR-equipped transformer without specifying the NGR monitoring (current transformer, voltage monitor, status contact) leaves the plant operator without ground fault visibility. The correct posture is to specify NGR monitoring integrated into the plant SCADA per IEC 61850, with the ground fault current and resistor temperature logged for periodic review.

What Solar EPCs Should Take Away

The 30-second answer is that vector group, impedance voltage, and neutral grounding method are the three parameters that drive a step-up transformer specification for a 100MW+ PV plant. Dy11 is the most common vector group for central-inverter plants with effectively grounded utility grids; uk% 10 to 12.5 is the typical range to coordinate with inverter short-circuit behavior; NGR sizing per IEEE 32 / GB/T 50064 limits the ground fault current to a value the inverter can sustain.

The 10-element spec checklist gives EPC procurement teams the structure of a complete step-up transformer specification. The 100MW PV plant case study illustrates how the three parameters come together in a real project specification. The 3 pitfalls give the procurement team a checklist of spec errors to avoid. Together they cover the most common decisions a solar EPC procurement team faces when specifying step-up transformers for utility-scale PV plants.

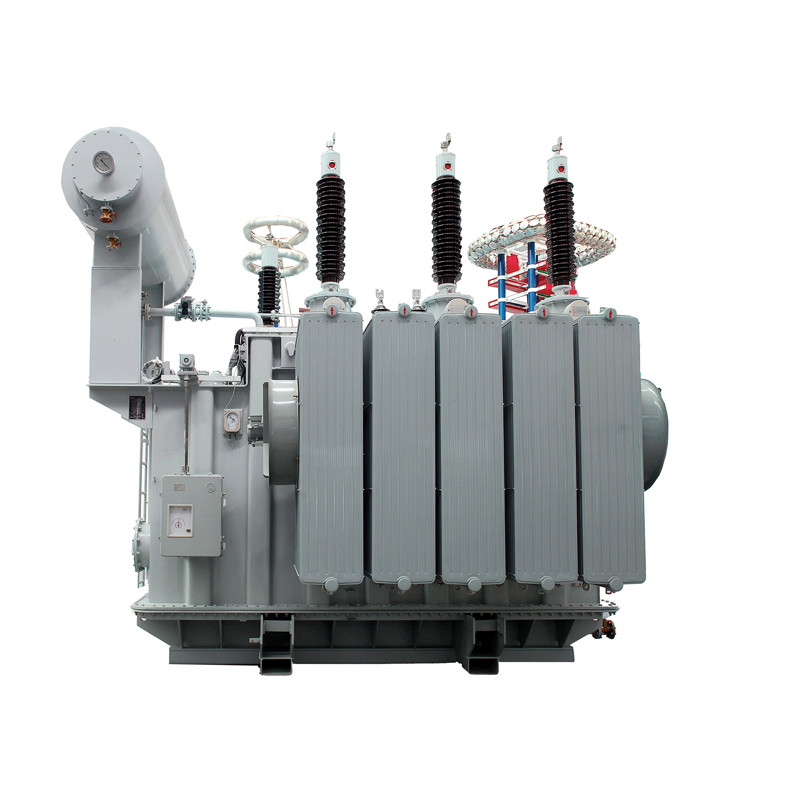

For solar EPC teams that want to consolidate supplier documentation, Tianan publishes a single product catalog covering 10–110kV oil-immersed power transformers for utility primary and PV plant step-up applications, with vector group options, impedance voltage selection, and NGR terminal options per project specification. Solar EPC teams and project developers can reach the Tianan engineering and sales team through the About Us contact channel for project-specific quotations.
