How to Size an Oil-Immersed Power Transformer: kVA Sizing Calculation, Demand Factor and Overload Margins

1. Why kVA Sizing Is a Five-Step Calculation

Sizing an oil-immersed power transformer is not a single calculation — it is a sequence of corrections applied to a nameplate kW figure. The nameplate kW of the connected equipment is the starting point; the transformer kVA rating is the destination. Between the two lie demand factor, diversity factor, power factor, harmonic derating, altitude correction, ambient temperature derating, future-growth margin, and a final round-up to the next standard rating.

Most transformer under-sizing failures on industrial and utility projects come from skipping one of these corrections, not from getting the base calculation wrong. A factory that adds a 250 kW production line to an existing 1000 Kva Transformer without re-evaluating the demand factor may find the transformer running at 95% load continuously — well above the IEEE C57.91 recommended continuous operating limit of 80% nameplate for normal aging.

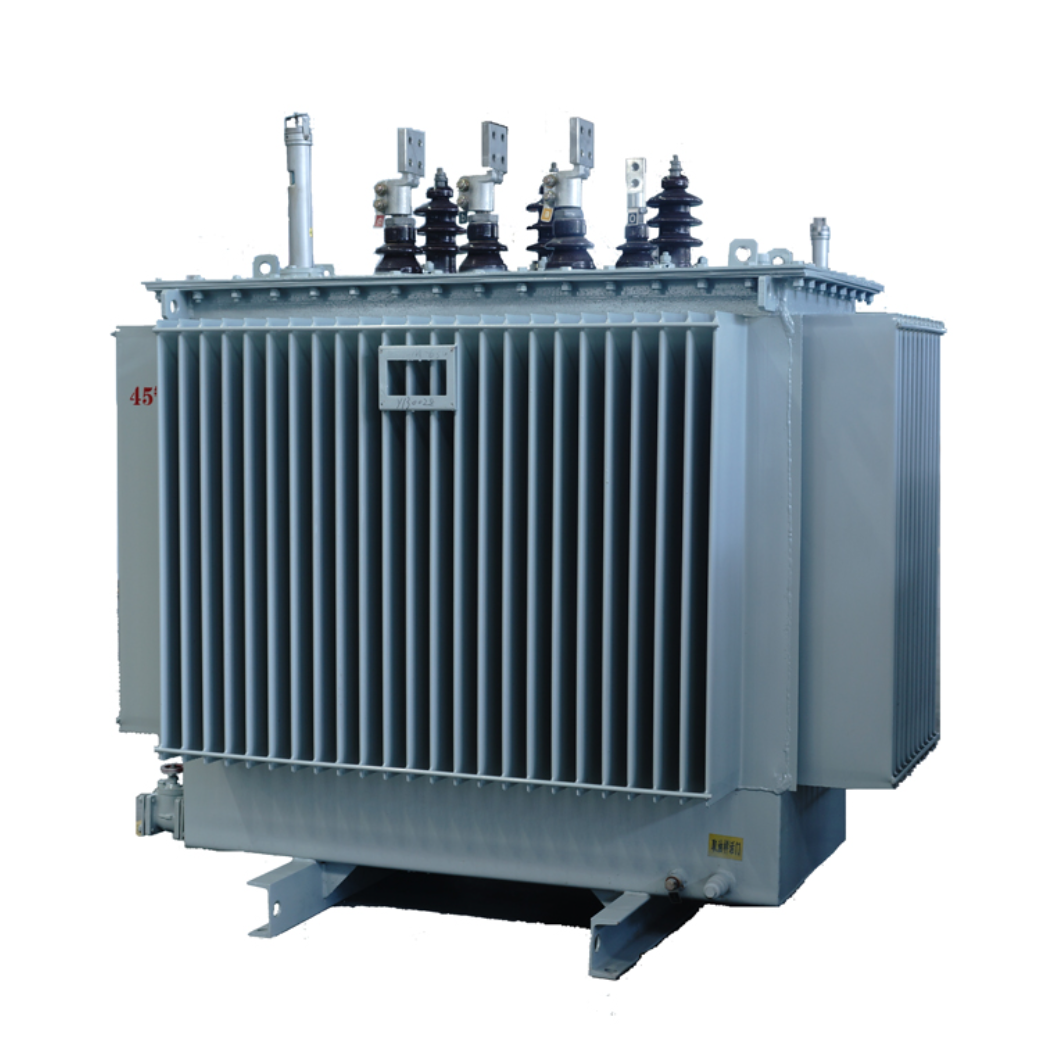

This article walks through each step of the sizing calculation, with worked examples drawn from commercial building and data center applications. The Tianan power transformer lineup covers 10-35 kV three-phase oil-immersed designs from 30 kVA to 31,500 kVA, and the 10-35 kV three-phase oil-immersed transformer is the workhorse product for most utility and industrial installations. For project-specific sizing support, the engineering team is available through the transformer sizing consultation request form.

2. Three-Phase kVA Formula: From Volts and Amps to kVA

Transformer rating is expressed in kVA (kilo-volt-amperes) rather than kW because the transformer itself is a passive device that must carry the total apparent power flowing through it, regardless of power factor. The relationship is:

where √3 ≈ 1.732, V_line is the line-to-line voltage, I is the line current, and cosφ is the power factor (the cosine of the phase angle between voltage and current). For a three-phase 10 kV / 400 V Distribution Transformer rated 1000 kVA at full load, the secondary current is 1000 × 1000 / (√3 × 400) = 1443 A.

Worked examples of the kVA formula at three common transformer voltages:

For the reverse calculation (kVA from kW), the rule is kVA = kW / cosφ. A 500 kW load at 0.85 power factor requires a transformer rated 500 / 0.85 = 588 kVA; the same 500 kW load at 0.95 corrected power factor requires only 500 / 0.95 = 526 kVA — a 62 kVA (10.5%) savings purely from power factor correction (see Taishan Transformer's transformer sizing reference for the complete load-demand calculation framework).

3. Demand Factor and Diversity Factor: NEC 220 vs IEC

The demand factor is the ratio of maximum demand of a load group to its total connected load. It accounts for the fact that not all connected equipment runs simultaneously at full nameplate. The diversity factor is the ratio of the sum of individual maximum demands to the maximum demand of the combined group — it accounts for the fact that different load categories peak at different times of day.

For most commercial buildings, NEC 220 and IEC 60364 produce similar demand factor recommendations. The transformer sizing calculator from AI Online gives the canonical NEC 220 sequence: total connected load → demand factor → kW demand → ÷ power factor → kVA demand → × future-growth margin → round up to next standard kVA. The four-step application:

1. Total connected load: sum the nameplate kW of every load — lighting, HVAC, motors, receptacles, process equipment.
2. Apply demand factor: multiply by the demand factor for the load category (NEC 220 Table or IEC 60364 Section 31).
3. Apply diversity factor across categories: if multiple load categories are present, sum the individual demands and apply a diversity factor of 1.10-1.25 to account for non-coincident peaks.
4. Convert to kVA: divide by the operating power factor to obtain the transformer kVA demand.

For utility and infrastructure projects outside North America, the IEC 60364 framework applies; for projects in the United States, the NEC Article 220 calculation is the standard reference. Both produce similar end results for the same load profile, but the demand factor tables differ for specific load types — refer to the local standard for the project.

4. Power Factor Correction and Its Impact on kVA

Industrial loads typically operate at a power factor between 0.75 and 0.88 uncorrected. Power factor correction with capacitor banks raises the operating PF to 0.92-0.98, which directly reduces the kVA demand on the transformer. The relationship is linear: improving PF from 0.85 to 0.95 reduces kVA by 10.5%; from 0.85 to 0.98 reduces kVA by 13.3%.

For a 500 kW load at 0.85 PF (uncorrected), the transformer must supply 588 kVA. After correction to 0.95 PF, the transformer must supply 526 kVA — a savings of 62 kVA. At a transformer unit cost of $50-80 per kVA, that is a one-time savings of $3,100-5,000 plus ongoing savings in transformer no-load losses. A 100 kVAr capacitor bank costs approximately $1,500-3,000 fully installed, giving a payback of 6-12 months on the avoided transformer upsize.

The additional benefit is utility penalty avoidance. Many utilities charge a power factor penalty below 0.90-0.95 PF, and offer a credit above 0.95. The combined transformer savings and utility penalty avoidance typically justify capacitor bank installation within the first year. For new industrial installations, the recommendation is to include capacitor banks at the design stage rather than retrofit.

5. Overload Margins: IEEE C57.91 Loading Guide

IEEE C57.91 (Guide for Loading Mineral-Oil-Immersed Transformers) is the authoritative reference for transformer loading beyond nameplate rating. The guide distinguishes between normal life expectancy loading (≤100% nameplate continuous) and short-term overload (above 100% for limited duration), with the trade-off being accelerated insulation aging.

The general rule is that for every 6°C increase in winding hot-spot temperature above the rated 98°C limit, the insulation aging rate doubles (the Arrhenius rule). A transformer running at 110% load continuously will age approximately twice as fast as one running at 100%. A transformer running at 125% load for 4 hours during an emergency will lose the equivalent of 1-3 days of normal life.

The practical implication for sizing: do not rely on short-term overload margins to compensate for sustained under-sizing. If the transformer is going to run at 110% continuously, select the next standard rating up — the long-term cost of accelerated insulation aging outweighs the capital savings.

6. Derating: K-Factor Harmonics, Altitude, and Ambient Temperature

Modern non-linear loads — switch-mode power supplies (servers, networking, LED drivers), variable-frequency drives (VFDs), solar inverters, EV chargers, and battery storage — generate harmonic currents that increase transformer losses beyond what the nameplate 50/60 Hz design assumes. IEEE C57.110 defines the K-factor as a measure of the harmonic load's ability to produce additional eddy-current losses in the transformer windings.

The rule for data centers and other K-13 load applications: a standard K-1 transformer must be derated by 30% to operate safely with the K-13 load. A 500 kVA standard unit delivers only 350 kVA of useful capacity. The two design options are (a) specify a K-13-rated transformer that handles full harmonic load without derating, or (b) oversize a standard K-1 transformer to compensate. For most data center applications, K-13 rated transformers are specified at the design stage — the unit cost premium (~10-15%) is small compared to the avoided downtime risk.

7. Standard kVA Ratings (IEC 60076 R10) and the Round-Up Rule

After all corrections have been applied, the calculated kVA demand is rounded up to the next standard kVA rating per IEC 60076 R10. The standard R10 sequence for three-phase oil-immersed distribution transformers is:

315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000, 12500, 16000, 20000, 25000, 31500 kVA

The round-up rule is not optional. Transformer manufacturers do not produce non-standard ratings between R10 steps — specifying 1050 kVA will result in a 1250 kVA transformer being quoted, with all the engineering and cost implications of that larger unit. The only exception is for very large custom transformers (typically above 30 MVA) where a non-standard rating may be feasible for utility or industrial process reasons (see MetaPower Solutions' transformer sizing guide for additional guidance on rating selection and specification documentation).

8. Worked Example 1: Commercial Office Building (4-Storey)

Scenario: three-phase 415 V supply for a 4-storey commercial office building in a tropical climate.

Step-by-step calculation:

1. Total connected load: 150 + 60 + 40 + 80 = 330 kW
2. Demand factor (NEC 220 for mixed commercial): 0.75. Demand = 330 × 0.75 = 247.5 kW
3. Diversity factor (cross-category for office loads): 1.15. Diverse demand = 247.5 / 1.15 = 215 kW
4. Power factor (after correction to 0.95): kVA demand = 215 / 0.95 = 226 kVA
5. Future-growth margin (25% over 10 years): 226 × 1.25 = 283 kVA
6. Altitude/ambient derating (sea level, 35°C ambient): no derating. Nameplate kVA required = 283 kVA
7. Round up to next standard R10 rating: above 250 kVA → 315 kVA

Recommended selection: a 315 kVA three-phase oil-immersed distribution transformer, 11 kV / 415 V, 50 Hz, Dyn11 vector group, ONAN cooling, with 80% maximum continuous loading target for normal aging.

9. Worked Example 2: Data Center (300 kW IT, N+1 Redundancy)

Scenario: three-phase 11 kV / 415 V supply for a small data center with 300 kW IT load, N+1 transformer redundancy, and predominantly switch-mode power supply equipment.

1. IT load: 300 kW (server, networking, storage)
2. Demand factor (data center — load is essentially continuous): 1.00. Demand = 300 × 1.00 = 300 kW
3. Power factor (modern IT equipment PF typically 0.95-0.98 uncorrected): kVA = 300 / 0.95 = 316 kVA
4. Harmonic derating per IEEE C57.110 — IT load is K-13. A standard K-1 transformer must be derated by 30%. To deliver 316 kVA at K-13 load, select 316 / 0.70 = 451 kVA standard K-1 → round up to next R10 = 500 kVA. Alternative: specify K-13-rated transformer and select 316 kVA → round up to 400 kVA.
5. N+1 redundancy: for N+1, two transformers each sized for full load. Single failure mode: if one transformer fails, the other must carry 100% load. The N+1 specification requires 2 × 500 kVA K-1 transformers (or 2 × 400 kVA K-13 transformers), not 2 × 300 kVA.
6. Future-growth margin (data center is typically provisioned for 50-100% growth): apply 1.5× → 500 × 1.5 = 750 kVA → round up to 800 kVA K-13 rated unit.

Recommended selection: 2 × 800 kVA K-13 rated three-phase oil-immersed transformers, 11 kV / 415 V, with ONAN cooling and integrated temperature monitoring. The N+1 redundancy means each unit is sized for 100% load, so either one alone can carry the full data center if the other fails.

10. What Tianan Needs for a Sizing Consultation and Worked Examples Summary

For a project-specific sizing consultation, the Tianan engineering team requests seven pieces of information: (1) connected load profile in kW by category; (2) operating power factor; (3) primary and secondary voltage (typically 11 kV / 415 V); (4) phase configuration; (5) installation altitude; (6) maximum ambient temperature; (7) application and harmonic profile. Providing these data points up-front returns a sized transformer recommendation with loss values and efficiency class verification within 2-3 business days.

The kVA sizing of an oil-immersed power transformer is fundamentally a five-step decision tree: total connected load → demand factor → power factor → overload/margins → next standard kVA rating. Each step has a defensible numerical correction; skipping any one of them produces a transformer that is either over-sized (and over-priced) or under-sized (and operationally unreliable). For harmonic-rich loads, add IEEE C57.110 K-factor derating; for high-altitude or hot-climate installations, apply IEC 60076-2 multiplicative correction. The Tianan power transformer product line covers 10-35 kV three-phase oil-immersed designs from 30 kVA to 31,500 kVA, plus 66-110 kV and 220 kV classes for transmission substations.
