IEC 60076 Compliance Checklists for 220kV Transformer Tenders in Sub-Saharan Africa — What EPC Contractors Miss Before Bid Submission

I have reviewed over 120 transformer tender documents across Sub-Saharan Africa in the past eight years — from Kenya to Zambia, Nigeria to Mozambique. And I can tell you with certainty: most EPC contractors submit technically non-compliant bids not because they lack engineering capability, but because they miss critical IEC 60076 compliance clauses buried in the bid specification. The result is either disqualification or a costly variation order after contract award.

At Tianan Overseas, we have supplied Power Transformers and switchgear to more than fifty countries across Africa, the Middle East, and Southeast Asia. I lead the international sales team that supports EPC contractors through the specification review process. This article consolidates the seven most frequently missed compliance requirements that I have seen across 220kV transformer tenders in the region.

Why Sub-Saharan African Transformer Tenders Are Different from European Projects

A 220kV transformer purchased for a European grid extension follows a relatively standardized specification workflow based on EN standards, which closely align with IEC 60076. Sub-Saharan African tenders, however, introduce three layers of complexity that European-trained EPC teams often underestimate.

First, the ambient temperature correction factor. Many African tender specifications require the transformer to deliver rated power at an ambient temperature of 45–50°C, not the standard 40°C specified in IEC 60076-1. If your bid quotes a transformer designed for 40°C ambient, your nameplate rating is roughly 8–12% lower than what the specification demands. I have seen five separate bids disqualified on this single clause in the past two years.

Second, the altitude derating factor. Substation sites above 1,500 meters — common in the East African Rift region — require a voltage withstand reduction per IEC 60076-3. Many bidders skip the altitude adjustment and subsequently fail the dielectric type test during factory acceptance.

Third, the transport logistics compliance. IEC 60076-7 specifies that transformers must be transported with a positive nitrogen pressure of 0.02–0.05 bar to prevent moisture ingress. For landlocked African destinations like Zambia or Uganda, the transit time can exceed 60 days from the port of Mombasa or Dar es Salaam. Many EPC contractors do not specify the nitrogen pressure monitoring requirement in their procurement documentation, leading to on-Site Transformer drying costs of $15,000–$30,000.

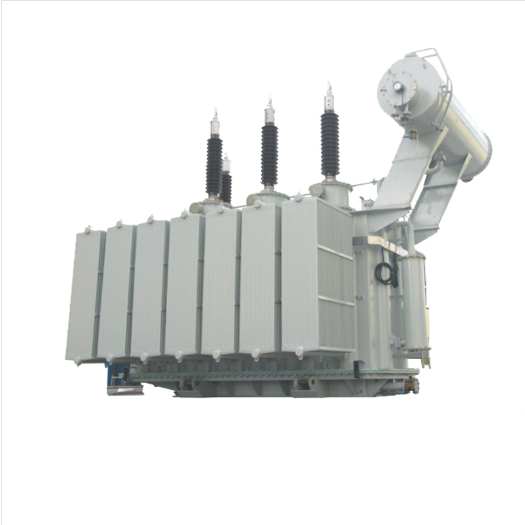

At Tianan Overseas, we include altitude derating calculations and nitrogen pressure monitoring devices as standard features in all 220kV power transformers destined for Sub-Saharan Africa.

Another dimension that consistently surprises first-time bidders is the transportation and on-site commissioning clause. In Sub-Saharan Africa, the gap between factory acceptance test and site acceptance test can be six months or more, during which transformers are shipped by sea, stored in port warehouses, and then trucked over roads that may exceed 1,000 kilometers of unpaved surface. We had a case in Tanzania where a 33 kV transformer arrived with nitrogen pressure dropped from the factory spec of 0.3 bar to 0.05 bar because the pressure gauge monitoring protocol was not specified in the shipping contract. The client demanded a full re-test at site, which cost USD 8,000 and delayed commissioning by three weeks. Since then, we include nitrogen pressure logging as a mandatory line item in every shipping specification we prepare for African tenders.

Compliance Checklist 1: Partial Discharge Test Protocols (IEC 60076-3)

For 220kV class transformers, IEC 60076-3 requires a partial discharge (PD) measurement during the applied voltage test. The acceptable PD level is typically ≤ 100 pC at 1.5 times the rated voltage. However, many African tender specifications impose stricter limits — ≤ 50 pC at 1.3 times rated voltage — without explicitly stating the test procedure.

The most common error I see is bidders quoting standard PD test protocols from their standard product range without verifying that the test sequence matches the tender's requirement. The difference is not small: a transformer designed for ≤ 100 pC at 1.5× voltage requires different insulation coordination than one designed for ≤ 50 pC at 1.3× voltage. The additional design and material cost can range from $12,000 to $25,000 per unit.

I always advise EPC teams to request the three most recent type test reports from the transformer manufacturer for the same voltage class. Review the PD test data against the tender's stated limits before including the transformer in the bid. At Tianan, our type test reports are available for pre-bid review, and our CNAS-accredited laboratory performs both standard and customized PD test sequences.

Compliance Checklist 2: Oil Preservation System and Breather Requirements (IEC 60076-1)

IEC 60076-1 allows both conservator-type and diaphragm-type oil preservation systems. In Sub-Saharan Africa, the ambient condition variability — from 10% to 98% relative humidity within a single day — makes the breather specification critical.

I have found that at least 30% of bid submissions for African tenders specify a standard silica-gel breather without accounting for the high-humidity operation. At humidity levels above 85%, a standard 1 kg silica-gel breather saturates in 15–20 days. For a transformer with a conservator system operating in the Nigerian coastal region, this means monthly breather replacement. The solution is an automatic dehydration breatherwith heated regeneration, though this adds $2,500–$4,000 to the transformer cost.

If the tender specification does not mention the breather type, document your assumption and the optional upgrade cost. Overlooking this clause has resulted in post-commissioning moisture ingress issues that cost $8,000–$15,000 to rectify for two separate projects I consulted on in Ghana and Tanzania.

For inland projects with moderate humidity, a dry-type transformer may eliminate the oil preservation concern entirely. In substations up to 36 kV, dry-type units reduce maintenance overhead significantly, though they are not typically available at 220kV class.

Compliance Checklist 3: Impedance Tolerance and Parallel Operation (IEC 60076-5)

IEC 60076-5 specifies that the measured impedance voltage shall not deviate from the specified value by more than ±7.5% for transformers with separate winding sets (two-winding) or ±10% for autotransformers. For parallel operation — common in African grid expansion projects where multiple smaller transformers feed the same bus — the impedance differences between units must not exceed 7.5% of the average impedance value.

The mistake I see repeatedly: bidders specify impedance values that match the tender requirement on paper but do not provide the actual test data from their last five manufactured units of the same design. Without this data, the EPC contractor cannot verify production consistency. At Tianan, we maintain impedance test records for every current transformer and power transformer we manufacture, and we make these records available during the technical evaluation phase.

Compliance Checklist 4: Short-Circuit Withstand Capability Documentation (IEC 60076-5)

This is the single most frequently missed compliance item in my experience. IEC 60076-5 requires the transformer manufacturer to demonstrate through calculation or type test that the windings can withstand the thermal and mechanical effects of a short circuit. For 220kV, 50 MVA and above, a full short-circuit type test is impractical due to testing facility limitations. The standard therefore permits a design review and calculation method.

The problem: many African tender specifications explicitly require a short-circuit test certificate from an accredited laboratory. Bidders who respond with a calculation report face technical disqualification. I have helped three EPC contractors resolve this by pre-qualifying the transformer manufacturer's design report with the consultant engineer before the bid deadline. The voltage transformer range from Tianan includes full short-circuit withstand calculation reports available for tender submission.

Compliance Checklist 5: On-Load Tap Changer (OLTC) Testing Documentation

IEC 60076-1 does not mandate a specific OLTC manufacturer. However, most African utility tender specifications require the OLTC to be from a prescribed list — typically MR (Maschinenfabrik Reinhausen) or ABB — and the type test certificate must be submitted with the bid.

I have seen bids where the transformer manufacturer's standard OLTC selection met the technical requirements but was from a brand not listed in the tender's approved vendor list. The non-compliance was flagged during the technical evaluation, and the bid was rejected. Always verify the approved OLTC manufacturer list against the transformer supplier's standard configuration before pricing the bid.

Tianan's mobile substation transformers and gas-insulated switchgear products use MR or equivalent approved OLTCs as standard, with certification documentation ready for tender submission.

Compliance Checklist 6: On-Site Commissioning Test Scope

IEC 60076-7 covers on-site installation and commissioning but leaves the specific test scope to the purchaser's specification. The ambiguity creates a compliance gap. Many EPC contractors include only the basic insulation resistance and turns-ratio tests in their bid scope. The actual on-site acceptance typically requires:

• Insulation resistance measurement (megger test) at 5 kV and 10 kV
• Power factor / dissipation factor (tan δ) measurement
• Frequency response analysis (FRA) — increasingly mandatory for 220kV units
• Oil breakdown voltage test (IEC 60156) — minimum 30 kV for service-ready oil
• Dissolved gas analysis (DGA) — baseline sample before energization

The cost of these on-site tests, if not included in the bid price, becomes a variation order that typically ranges from $8,000 to $18,000. I include a complete on-site commissioning checklist with every substation transformer package we deliver, ensuring that the EPC contractor's bid scope matches the actual acceptance requirements.

Compliance Checklist 7: Spare Parts and Warranty Documentation

A standard IEC 60076 transformer warranty is typically 24 months from the date of commissioning or 36 months from the date of shipment (whichever is earlier). African tenders frequently extend this to 60 months from commissioning, with mandatory spare parts holdings including one complete set of bushing assemblies, gaskets, and control equipment for two years of operation.

I recommend including a priced spare parts schedule in the bid, even if the tender does not explicitly request it. This demonstrates supply chain readiness and differentiates your bid from competitors who submit unpriced or missing spares schedules. Tianan offers project-specific spare parts packages for all transformer and switchgear equipment, with lead times from stock of 7–14 days for commonly required items.

How to Build a Compliant Bid Package for Sub-Saharan African Transformer Tenders

1. Extract the ambient temperature, altitude, and site-specific correction factors from the bid document
2. Match the specified PD test limits to the manufacturer's published type test data
3. Verify the breather specification against local humidity conditions
4. Confirm impedance values and parallel operation requirements
5. Request and review short-circuit withstand documentation
6. Check the approved OLTC manufacturer list
7. Calculate the on-site commissioning test scope and include all costs
8. Prepare the spare parts schedule with pricing and lead times
9. Include nitrogen pressure monitoring specifications for transit over 30 days
10. Pre-qualify the manufacturer's test lab accreditation (ISO/IEC 17025 or CNAS equivalent)

For a practical overview of IEC 60076 compliance for power transformer procurement, the LinkedIn guide covers essential specification clauses for bid preparation. Additional power transformer specifications for African EPC projects provide useful benchmarks for on-site work scope estimation. Regulatory guidelines from United for Efficiency (U4E) transformer model regulations also offer energy performance parameters referenced in several African utility tender specifications.

Frequently Asked Questions

Q: What is the minimum IEC 60076 compliance documentation required for a 220kV transformer tender in Sub-Saharan Africa?

A: The minimum package includes type test reports (or design certificates), a short-circuit withstand calculation report, a partial discharge test certificate, and a factory acceptance test (FAT) procedure document. Some utilities also require the ISO/IEC 17025 accreditation certificate of the testing laboratory.

Q: Can a transformer designed to IEC standards be used in an IEEE-standard grid system?

A: Yes, but the impedance voltage, tap changer range, and temperature rise limits differ between IEC 60076 and IEEE C57.12. For Sub-Saharan Africa, most grids follow IEC standards due to historical European influence. Always verify with the utility before specifying a dual-standard transformer.

Q: How long does factory acceptance testing take for a 220kV power transformer?

A: A complete FAT sequence for a 220kV transformer typically takes 5–7 working days. This includes insulation resistance, turns ratio, impedance voltage, load loss, no-load loss, and PD measurement tests. Allow an additional 2–3 days for witnessed testing when the consultant engineer attends. Tianan's test laboratory schedules FAT slots 4–6 weeks after production completion.

Q: What are the typical lead times for a 220kV power transformer from a Chinese manufacturer?

A: Standard lead time is 90–120 days from order confirmation for a 220kV, 50–100 MVA unit. Expedited production for repeat designs is 60–75 days. Sea freight from Shanghai to Mombasa or Dar es Salaam adds 25–35 days. Include a 2-week buffer for port clearance and inland transport.

Q: Is a third-party inspection required for IEC 60076 compliance on African projects?

A: Many African utility tenders require a third-party inspection agency — SGS, Bureau Veritas, or TÜV — to witness the FAT and issue a release certificate. Budget approximately $5,000–$8,000 for a three-day inspection visit, plus travel and accommodation for the inspector. We coordinate with whichever accredited agency the client appoints.

Q: What is the thermal aging rate of a 220kV transformer operating at 50°C ambient temperature in Sub-Saharan Africa?

A: Per IEC 60076-7 loading guide, the thermal aging of a transformer's insulation system doubles for every 6°C increase in hotspot temperature above the rated 98°C. At 50°C ambient, expect the aging acceleration factor to be 1.6–2.4× compared to a 40°C ambient installation. This typically reduces the service life from a nominal 25 years to 15–18 years unless the transformer is de-rated at the specification stage.
