Mobile Substation Procurement for Emergency Grid Restoration: How 40MVA Skid-Mounted Units with Integrated GIS Enable Rapid Deployment in Post-Disaster Scenarios

What this guide covers. A procurement framework for 40MVA skid-mounted mobile substations with integrated GIS in post-disaster grid restoration scenarios. The guide covers five procurement dimensions: deployment timeline (30-60 hours vs 6-12 months), applicable standards (IEC 61850, IEC 62271, IEEE 1613, IEC 60076, IEC 60529 IP54, ANSI/IEEE C37.90, IEC 60255, ASTM A123, ISO 9001), procurement cycle time (25-45 weeks standard, 14-20 weeks emergency), cost economics vs traditional substation, and operational limitations for emergency scenarios. The guide is structured as a procurement framework because the post-disaster scenario requires rapid decision-making under time pressure, and the procurement framework enables faster decision-making by mapping the critical decisions to a structured timeline.

Mr. Henry is the International Sales Manager at Ningbo Tianan Imp. & Exp. Co., Ltd., with 15+ years of experience in power equipment export across Asia, Africa, the Middle East, and South America. He specializes in substation solutions, Power Transformers, and switchgear for utility and infrastructure projects, and has personally supported mobile substation deployments for typhoon-hit Philippines, hurricane-affected Caribbean islands, earthquake-stricken Türkiye, and disaster-affected African and South American utility clients.

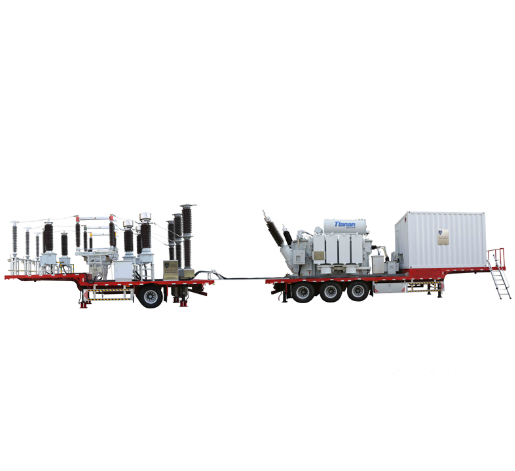

TIANAN mobile substation product line with integrated GIS for emergency grid restoration. The skid-mounted design enables deployment within 30-60 hours from site arrival to energization.

2×3 Procurement Decision Matrix — Scenario × Substation Type

The 2×3 procurement decision matrix maps two disaster scenarios (acute impact and extended outage) against three substation types (mobile, semi-mobile, traditional rebuild). Each cell identifies the recommended substation type, the deployment timeline, and the procurement priority.

Section 1 — 40MVA Mobile Substation Architecture with Integrated GIS

A 40MVA skid-mounted mobile substation with integrated GIS consists of four primary subsystems integrated on a single reinforced steel skid frame.

Power Transformer (40 MVA). The power transformer is typically a three-phase oil-immersed transformer with ONAN (Oil Natural Air Natural) or ONAF (Oil Natural Air Forced) cooling, rated 40 MVA with voltage levels typically at 110kV/33kV (or 132kV/33kV, 110kV/11kV, 66kV/11kV depending on the grid). The transformer typically uses copper windings (vs aluminum for cost efficiency in emergency scenarios) and operates at 50Hz or 60Hz depending on the grid standard. The transformer is the largest and heaviest component of the mobile substation, typically 4.5-5.5 m long × 3.0-3.5 m wide × 3.5-4.0 m high and 35-45 tons.

GIS Switchgear (Medium Voltage Side). The GIS (Gas-Insulated Switchgear) on the medium-voltage side (typically 33kV or 11kV) is a modular SF6 gas-insulated switchgear assembly that provides the protection, disconnection, and circuit breaking functions for the outgoing distribution feeders. The GIS is much smaller than equivalent air-insulated switchgear (AIS) — typically 1.5-2.5 m wide for a 5-panel GIS bay set vs 5-8 m wide for the equivalent AIS, allowing the mobile substation skid to remain transportable.

Control and Protection Panels. The control and protection panels include the protection relays (typically IEC 61850 compliant numerical relays), the SCADA communication gateway (for remote monitoring and control), the auxiliary power distribution, and the battery backup system. The panels are typically mounted in a separate enclosure or container to keep them clean and accessible for operators.

Auxiliary Systems. The auxiliary systems include the transformer cooling fans (ONAF configuration), the oil temperature and oil level monitoring, the Buchholz relay for transformer internal fault detection, the sudden pressure relay for rapid internal fault response, the conservator tank with breather, the cable termination compartments, and the grounding system. The auxiliary systems are pre-wired and pre-tested at the OEM factory.

Section 2 — Deployment Timeline for Post-Disaster Scenarios

The deployment timeline for a 40MVA mobile substation in a post-disaster scenario is structured in three phases: preparation, delivery and positioning, and commissioning.

Phase 1: Preparation (12-24 hours). Site leveling to within 1% grade (the skid frame includes a tolerance for minor leveling adjustments), access road preparation for lowboy trailer transport (typically 4.5-5.5 m vertical clearance, 6-8 m horizontal clearance), gravel pad compaction (200-300 mm depth of compacted Class 5 gravel, providing adequate bearing capacity for the 35-45 ton transformer load). For coastal or flood-prone scenarios, the pad may need elevating above the historical flood level.

Phase 2: Delivery and Positioning (6-12 hours). Transport to site via flatbed truck or lowboy trailer (transformer weight 35-45 tons requires specialized heavy-haul permit), offloading with 200-ton crane (the transformer is lifted using the integrated lifting lugs on the top of the transformer tank), skid positioning on the prepared pad (the skid frame has integrated fork-lift pockets and crane-lifting points for easy positioning).

Phase 3: Commissioning (12-24 hours). Cable termination to the incoming HV transmission line (typically 110kV or 132kV via drop-down insulator strings or rigid bus connection), cable termination to the outgoing MV distribution feeders (typically 33kV or 11kV via pre-terminated cable joints), protection relay settings (overcurrent, differential, distance, breaker failure), communication link to the SCADA system (typically via cellular or satellite link), energization tests (no-load energization tests, load-step tests, protection function tests).

Total Deployment Timeline: 30-60 hours from arrival at site to energization. By comparison, deploying a traditional substation takes 6-12 months from site preparation to energization, with the bulk of the time in construction (foundations, buildings, cable trays) rather than equipment installation.

TIANAN mobile substation global deployment reference. TIANAN has supplied mobile substations to 30+ countries across Asia, Africa, the Middle East, and South America, with field-proven deployment timelines averaging 36-48 hours from site arrival to energization.

Section 3 — Standards Compliance Framework

The standards compliance framework for 40MVA mobile substations covers 10 primary standards spanning equipment performance, protection, communications, environmental, and quality management.

IEC 61850 — Communication Networks and Systems for Power Utility Automation. IEC 61850 is the international standard for communication in substations. It defines the data models, communication services, and engineering process for the Intelligent Electronic Devices (IEDs) in the substation. IEC 61850 compliance is required for interoperability between protection relays from different vendors and for integration with the utility's SCADA system. For mobile substations, IEC 61850 enables rapid integration with the host utility's existing protection and control infrastructure.

IEC 62271 — High-Voltage Switchgear and Controlgear (above 1kV). IEC 62271 is the standard series for high-voltage switchgear. IEC 62271-100 covers circuit breakers, IEC 62271-200 covers metal-enclosed switchgear, and IEC 62271-203 covers gas-insulated switchgear (GIS). For mobile substations, the GIS on the medium-voltage side must comply with IEC 62271-203. The standard specifies the rated voltage, rated current, rated short-circuit current, rated insulation level, and the type/routine tests required.

IEEE 1613 — Environmental and Testing Requirements for Communications Networking Devices in Electric Power Substations. IEEE 1613 specifies the environmental and testing requirements for communications devices in substations. The standard covers temperature, humidity, altitude, vibration, and electromagnetic compatibility. For mobile substations deployed in harsh post-disaster environments, IEEE 1613 compliance ensures the communication devices continue operating despite the challenging conditions.

IEC 60076 — Power Transformers. IEC 60076 is the standard series for power transformers. IEC 60076-1 covers general requirements, IEC 60076-2 covers temperature rise, IEC 60076-3 covers insulation levels and dielectric tests, and IEC 60076-4 covers tap changers. For mobile substations, the 40MVA power transformer must comply with IEC 60076 including the routine tests (winding resistance, voltage ratio, short-circuit impedance, load loss, no-load loss, dielectric tests).

IEC 60529 — Degrees of Protection Provided by Enclosures (IP Code). IEC 60529 specifies the ingress protection rating of enclosures. For mobile substations, the GIS enclosure typically requires IP54 (dust-protected and protected against water splashes from any direction). The control panel enclosure typically requires IP52 (dust-protected and protected against water drips).

ANSI/IEEE C37.90 — Relays and Relay Systems Associated with Electric Power Apparatus. ANSI/IEEE C37.90 covers the surge withstand capability (SWC) testing of protective relays. For mobile substations, the protection relays must withstand the standard SWC test waveforms to ensure reliable operation in the high-electromagnetic-interference environment of a substation.

IEC 60255 — Measuring Relays and Protection Equipment. IEC 60255 is the standard series for measuring relays and protection equipment. The standard covers the performance, testing, and safety of numerical protection relays. For mobile substations, the protection relays should comply with IEC 60255 including the relevant product-specific standards (IEC 60255-21 for vibration, IEC 60255-27 for product safety).

ASTM A123 — Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products. ASTM A123 specifies the zinc coating thickness and adhesion requirements for hot-dip galvanized steel. For mobile substations, the skid frame is typically hot-dip galvanized per ASTM A123 to ensure 20-30 year corrosion resistance in outdoor deployment environments including coastal and tropical zones.

ISO 9001 — Quality Management Systems — Requirements. ISO 9001 is the international standard for quality management systems. The mobile substation OEM must be ISO 9001 certified, with the scope covering design, manufacturing, testing, and after-sales service. The certification body should be accredited by an IAF MLA signatory (e.g., ANAB, UKAS, CNAS).

Section 4 — Procurement Cycle Time

The procurement cycle time for a 40MVA mobile substation from order to delivery varies significantly between standard procurement and emergency procurement.

Standard Procurement (25-45 weeks). The standard procurement cycle covers: specification development (3-6 weeks), factory engineering and approval drawings (4-6 weeks), manufacturing (16-24 weeks), FAT (1-2 weeks), disassembly and packing (1-2 weeks), and shipping (4-6 weeks by sea). The total of 25-45 weeks allows the OEM to optimize production scheduling and material sourcing, with a typical 32-36 week cycle for a standard 40MVA mobile substation configuration.

Emergency Procurement (14-20 weeks). The emergency procurement cycle covers expedited factory engineering (2-3 weeks), prioritized manufacturing slot in the OEM production line (8-12 weeks), parallel FAT testing (1 week), expedited packing (3-5 days), and air freight for emergency response (7-10 days). The total of 14-20 weeks requires the OEM to re-prioritize the production line, often displacing other customer orders. Emergency orders typically carry a 25-50% premium on the equipment cost.

Pre-Positioning Strategy. For utilities that anticipate emergency scenarios (e.g., typhoon-prone regions, earthquake-active zones, hurricane-affected coastlines), a pre-positioning strategy is recommended. The utility procures the mobile substation 12-18 months in advance of the actual need, and the OEM holds the unit in finished-goods inventory or the utility holds the unit at a storage yard near the disaster-prone zone. Pre-positioning reduces the emergency procurement cycle to 7-14 days (transport + commissioning only). The 25-50% emergency premium is replaced by the carrying cost of the pre-positioned unit (typically 5-10% of equipment cost per year).

Section 5 — Cost Economics vs Traditional Substation

The cost economics of mobile substations vs traditional substations for emergency scenarios differ in both upfront cost and lifecycle cost.

Upfront Cost Comparison. A 40MVA mobile substation with skid integration typically costs 1.5-2.5 million USD including transformer, GIS, protection, and skid integration. A traditional 40MVA substation of similar capacity typically costs 3.0-5.0 million USD including civil works, building construction, transformer, switchgear, and cabling. The mobile substation has higher equipment cost (the integrated skid design adds 30-50% premium over equivalent loose equipment) but lower civil/installation cost (saves 60-80% on civil works and buildings).

Lifecycle Cost Comparison. Mobile substations have higher transformer replacement cost when the transformer reaches end of life (10-15% higher than field installation, due to the additional transportation and re-installation cost). However, the relocateability of mobile substations allows them to be redeployed as needs shift, extending the useful lifecycle compared to a traditional substation that becomes stranded at a single site.

Outage Cost Avoidance. For emergency scenarios, the outage cost is the dominant economic driver. Industrial customer outage costs are typically 50,000-200,000 USD per day, commercial customer outage costs are 10,000-50,000 USD per day, and hospital outage costs are incalculable from a patient safety perspective. A 30-60 hour mobile substation deployment that avoids 30-60 days of traditional substation construction saves 1.5-12 million USD in outage costs — sufficient to justify 2-10 mobile substations in the procurement budget.

Section 6 — Operational Limitations

40MVA mobile substations have five operational limitations in post-disaster scenarios that should be considered during procurement.

Limitation 1: Transportation Constraints. 40MVA transformers are typically 4.5-5.5 m long × 3.0-3.5 m wide × 3.5-4.0 m high and 35-45 tons, requiring specialized heavy-haul transport. The route planning must accommodate bridges with adequate load rating (typically 50+ ton rating), tunnels and overpasses with adequate vertical clearance, and roads with adequate horizontal curvature for the long-wheelbase trailer.

Limitation 2: Site Constraints. The skid footprint is typically 10-15 m × 4-6 m, requiring adequate level space that may be limited in disaster zones. For urban post-disaster scenarios, the available site space may be insufficient.

Limitation 3: Noise. The transformer produces 75-85 dB(A) at 1 m, requiring 50-100 m setback from occupied buildings. For dense urban areas, the noise setback may require zoning variances or noise barriers.

Limitation 4: Oil Containment. The transformer contains 8,000-15,000 liters of mineral oil, requiring oil containment bunding (110% volume capacity per environmental regulations). The bunding adds 50-100 m² of additional footprint beyond the skid.

Limitation 5: Limited Duration Operation. Mobile substations are typically designed for 1-3 years of continuous operation before being relocated. For longer-term emergency power, a traditional substation should be constructed at the same site while the mobile substation continues operation.

Common Specification Mistakes on Emergency Mobile Substation Procurement

Five recurring specification mistakes arrive on emergency mobile substation RFQs from utility procurement teams. Each is fixable with a 30-minute conversation with the OEM, but each can cascade into deployment delay or specification non-compliance if left unaddressed.

Mistake 1: Specifying the mobile substation without specifying the transport route. 40MVA mobile substations require specialized heavy-haul transport with specific route requirements (bridge load rating, vertical clearance, horizontal curvature). Specify the OEM's transport planning service or the utility's own logistics coordination.

Mistake 2: Skipping the IEC 61850 compliance requirement. IEC 61850 is required for interoperability with the utility's SCADA system. Some low-cost mobile substation OEMs skip IEC 61850 to save cost, requiring the utility to install custom communication gateways. Specify IEC 61850 compliance in the RFQ.

Mistake 3: Skipping the noise setback analysis. 75-85 dB(A) transformer noise at 1 m requires 50-100 m setback from occupied buildings per WHO/IFC/GB 3096 noise standards. For dense urban sites, the noise setback may be impossible without noise barriers.

Mistake 4: Skipping the oil containment bunding. 8,000-15,000 L transformer oil requires bunding per environmental regulations (110% volume capacity). The bunding adds 50-100 m² of footprint beyond the skid and is often overlooked in site planning.

Mistake 5: Specifying only the transformer rating without specifying the protection philosophy. The protection philosophy (overcurrent, differential, distance, breaker failure) must be specified in the RFQ to ensure compatibility with the utility's protection scheme. Some mobile substation OEMs default to a generic protection scheme that may not match the utility's existing protection coordination.

What Mr. Henry Tells Every Emergency Mobile Substation Procurement Manager

If you are procuring a 40MVA mobile substation for emergency grid restoration, the five decision dimensions are deployment timeline (30-60 hours vs 6-12 months for traditional substation), standards compliance (IEC 61850 / IEC 62271 / IEEE 1613 / IEC 60076 / IEC 60529 IP54 / ANSI/IEEE C37.90 / IEC 60255 / ASTM A123 / ISO 9001), procurement cycle (25-45 weeks standard, 14-20 weeks emergency, 7-14 days pre-positioning), cost economics (1.5-2.5 million USD mobile vs 3.0-5.0 million USD traditional, with outage cost avoidance dominating for emergency scenarios), and operational limitations (transportation / site / noise / oil / duration).

For post-disaster grid restoration, the mobile substation is the bridge power solution that enables rapid restoration of electricity supply to lifesaving infrastructure (hospitals, emergency services, water treatment) while the permanent substation is rebuilt over 6-12 months. The mobile substation's relocateability allows the utility to use the same asset across multiple emergencies over its 10-15 year lifecycle.

TIANAN's mobile substation product line covers 5-60 MVA skid-mounted mobile substations with integrated GIS for emergency and grid-constraint scenarios. The TIANAN power equipment product portfolio includes power transformers, switchgear, and substation solutions for utility and infrastructure projects. For emergency mobile substation procurement support on your specific post-disaster scenario, the TIANAN project desk is reachable through Mr. Henry on Facebook, X, or LinkedIn.

FAQ — Mobile Substation for Emergency Grid Restoration

1. What is a 40MVA skid-mounted mobile substation with integrated GIS and how does it differ from a traditional substation?

A 40MVA skid-mounted mobile substation with integrated GIS (Gas-Insulated Switchgear) is a fully pre-engineered electrical substation mounted on a reinforced steel skid frame, with the power transformer, medium-voltage GIS switchgear, low-voltage switchgear, control and protection panels, and auxiliary systems all pre-wired and pre-tested at the factory. The unit is delivered as a complete transportable assembly that can be installed at the site within 24-72 hours versus 6-12 months for a traditional substation.

2. How quickly can a 40MVA mobile substation be deployed in a post-disaster scenario?

The deployment timeline for a 40MVA mobile substation in a post-disaster scenario is structured in three phases: (1) Preparation phase (12-24 hours) — site leveling, access road preparation, gravel pad compaction; (2) Delivery and positioning phase (6-12 hours) — transport to site, offloading with 200-ton crane, skid positioning on the prepared pad; (3) Commissioning phase (12-24 hours) — cable termination, protection relay settings, communication link to the SCADA system, energization tests. Total deployment timeline: 30-60 hours from arrival at site to energization.

3. What regulatory standards apply to mobile substations for emergency grid restoration?

The regulatory standards applicable to mobile substations for emergency grid restoration include: (1) IEC 61850 for communication networks and protocols in substations; (2) IEC 62271 for high-voltage switchgear; (3) IEEE 1613 for environmental and testing requirements for communications networking devices; (4) IEC 60076 for power transformers; (5) IEC 60529 for ingress protection (IP rating); (6) ANSI/IEEE C37.90 for surge withstand capability testing; (7) IEC 60255 for measuring relays and protection equipment; (8) ASTM A123 for zinc coatings on the steel skid frame; (9) ISO 9001 for OEM quality management.

4. What is the typical procurement cycle time for a 40MVA mobile substation from order to delivery?

The typical procurement cycle time for a 40MVA mobile substation from order to delivery is: (1) Specification development and technical clarification (3-6 weeks); (2) OEM factory engineering and approval drawings (4-6 weeks); (3) Manufacturing (16-24 weeks); (4) Factory acceptance testing (1-2 weeks); (5) Disassembly and packing for transport (1-2 weeks); (6) Shipping (4-6 weeks by sea or 7-10 days by air for emergency). Total: 25-45 weeks for standard procurement, 14-20 weeks for emergency procurement with expediting.

5. What are the cost economics of mobile substations vs traditional substations for emergency scenarios?

The cost economics of mobile substations vs traditional substations for emergency scenarios differ in both upfront cost and lifecycle cost. Upfront cost: a 40MVA mobile substation typically costs 1.5-2.5 million USD vs 3.0-5.0 million USD for a traditional 40MVA substation. The mobile substation has higher equipment cost (30-50% premium for skid integration) but lower civil/installation cost (saves 60-80% on civil works and buildings). For emergency scenarios, the outage cost avoidance (50,000-200,000 USD per day for industrial customers) dominates the economic analysis.

6. What are the limitations of 40MVA mobile substations in post-disaster scenarios?

The limitations of 40MVA mobile substations in post-disaster scenarios include: (1) Transportation constraints — 4.5-5.5 m × 3.0-3.5 m × 3.5-4.0 m and 35-45 tons require specialized heavy-haul transport; (2) Site constraints — 10-15 m × 4-6 m skid footprint requires adequate level space; (3) Noise — 75-85 dB(A) at 1 m requires 50-100 m setback from occupied buildings; (4) Oil containment — 8,000-15,000 L transformer oil requires bunding (110% volume capacity); (5) Limited duration operation — 1-3 years continuous operation before relocation.
