Mobile Substation Sourcing for Mining Operations: What Project Owners Specify for 132kV Skid-Mounted Transformer Lead Times and IEC Compliance

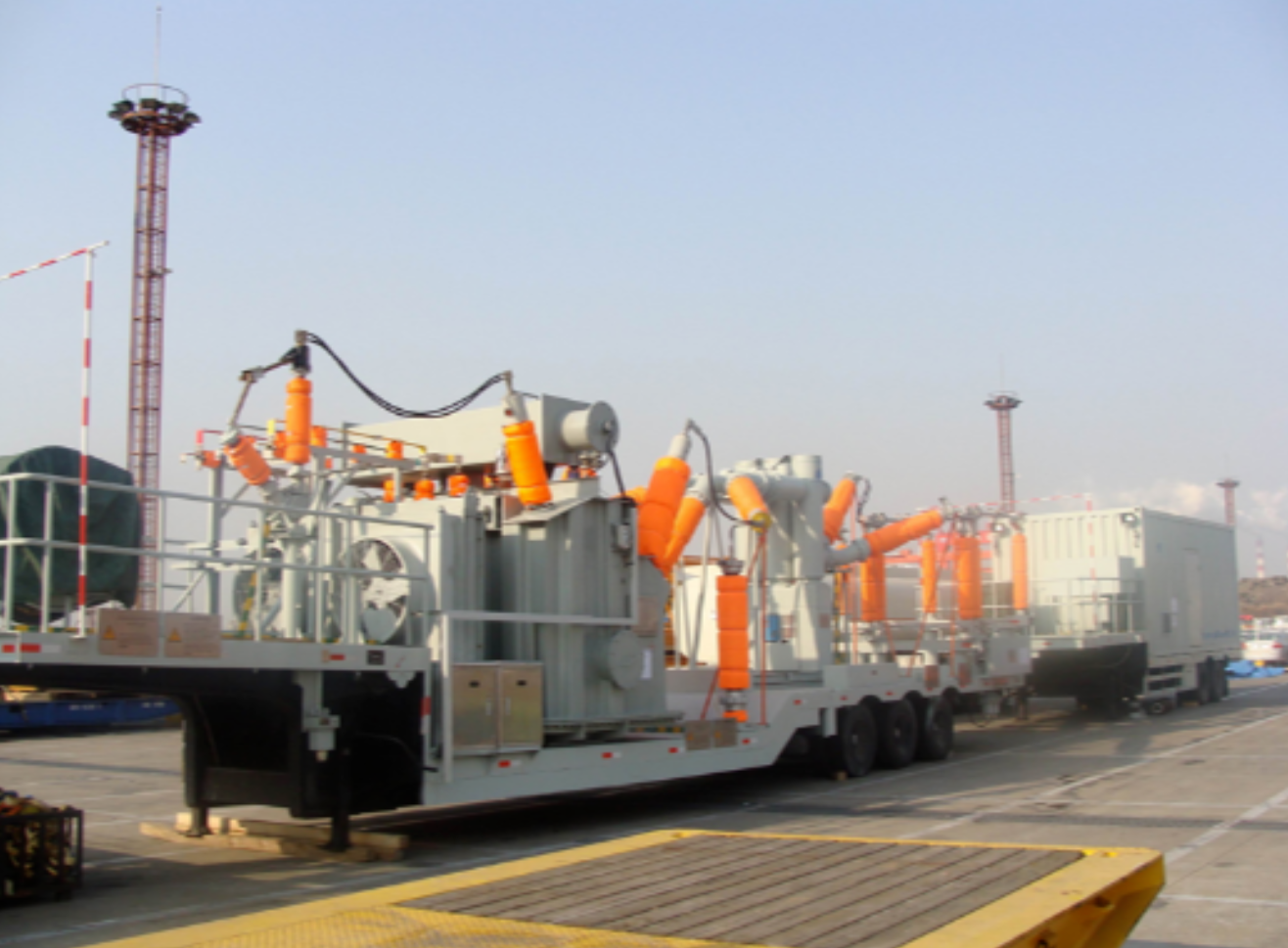

Skid-mounted mobile Substation Unit from the Tianan ZGS series. Integrated 132kV transformer, HV/LV switchgear, and protection panels on a single transportable skid frame for mining and remote site applications.

1. Why the Mobile Substation Format Matters for Mining Operations

A mobile substation is one of the highest-leverage procurement decisions on a remote mining project. It cuts the site commissioning window from 30-60 days (permanent substation) to 5-10 days (mobile), it can be relocated as the mine face moves, and it provides temporary power during permanent substation outages. A buyer who specifies the right mobile substation format at the inquiry stage gets a unit that can be delivered to a remote site on a standard road or rail route and energized within a week of arrival. A buyer who specifies the wrong format pays for civil works that the mobile design was supposed to eliminate.

For a mining project owner, five pillars dominate the specification matrix: IEC 62271 / IEC 60076 compliance, containerized skid engineering, lead time milestones, site commissioning matrix, and mine-load-driven MVA sizing. Each pillar maps to a specific risk the project owner carries from order to first energization, and each pillar maps to a specific deliverable the project owner should request before issuing the purchase order. The rest of this article walks through the five pillars one by one, then explains how the IEC compliance stack, the transport constraints, and the lead time math set the procurement schedule.

The remote-site perspective matters: a buyer who quotes an open-pit copper mine in Sub-Saharan Africa sees a different transport and environmental specification than a buyer quoting an underground coal mine in Australia. The mobile substation specification follows the mine site, not the manufacturer's standard product.

2. Quick Reference Chart — Five Pillars of 132kV Mobile Substation Sourcing

The chart below summarizes the five pillars a mining project owner typically walks through when specifying a 132kV skid-mounted mobile substation. The standard references and the milestone figures are drawn from the published IEC 62271 and IEC 60076 series; exact requirements depend on the project specification, the mine site conditions, and the project owner's engineering standard.

Reading a 132kV mobile substation specification line by line against the five pillars is the engineering exercise that prevents the most common mining procurement mistakes. The next sections explain what each pillar actually constrains.

3. IEC Compliance Stack — Why Seven Standards Anchor the Specification

A 132kV mobile substation is a multi-component system that touches seven different IEC standard families. The project owner should verify the manufacturer publishes compliance with all seven on the data sheet:

1. IEC 62271-200 (HV metal-enclosed switchgear for rated voltages above 1 kV and up to and including 52 kV). Covers the LV and MV switchgear panels in the mobile substation.
2. IEC 62271-203 (HV gas-insulated switchgear for rated voltages above 52 kV). Covers the 132kV GIS module at the HV side of the transformer.
3. IEC 60076 (power transformers). Covers the 132kV/medium-voltage transformer at the core of the mobile substation.
4. IEC 60255 (measuring relays and protection equipment). Covers the protection relays for overcurrent, differential, distance, and busbar protection.
5. IEC 61850 (communication networks and systems for power utility automation). Covers the substation communication bus and the SCADA integration.
6. IEC 61869 (instrument transformers). Covers the current transformers and voltage transformers used for protection and metering.
7. IEC 60068 (environmental testing). Covers the climatic, vibration, and shock tests that confirm the mobile substation survives the transport and the remote site ambient.

A buyer who walks through these seven standards at the inquiry stage gets a manufacturer whose mobile substation meets the international procurement baseline. A buyer who skips any standard pays for the field upgrade cost after delivery.

4. Containerized Skid Engineering — Transport and Lifting Constraints

The containerized skid is the structural platform that carries the transformer, the switchgear, and the protection panels as a single transportable unit. The skid engineering drives the road and rail route feasibility at the remote mine site. Typical skid dimensions and weights for a 132kV mobile substation:

• Skid length: 8-12 meters
• Skid width: 3-3.5 meters (must fit standard road transport regulations)
• Skid height: 3.5-4.5 meters including the transformer conservator
• Total transport weight: 30-80 tons depending on the MVA rating
• Lifting points: Four-point top lift or four-point base lift, depending on the transport mode
• IP rating: IP54 or higher for outdoor enclosure protection
• Climatic class: -25°C to +55°C operating ambient, depending on the mine site

The skid drawing should be cross-checked against every country's road and rail regulations on the transport route. A width that exceeds 3.5 meters may require a special transport permit in some jurisdictions, and a height that exceeds 4.5 meters may require route survey for overhead line crossings. A buyer who confirms the route constraints at the inquiry stage avoids a special permit delay at the port.

5. Lead Time Milestones — From Design Freeze to First Energization

The lead time for a 132kV mobile substation follows a seven-milestone path from design freeze to first energization. The project owner should request the manufacturer's milestone schedule at the inquiry stage and confirm the dates against the mine power-on target.

1. Design freeze. The single-line diagram, the general arrangement, and the protection single-line are approved. Typical duration: 4-6 weeks.
2. Material procurement. The transformer, the switchgear panels, and the protection relays are ordered. Typical duration: 6-10 weeks.
3. Skid fabrication. The structural skid is welded and painted. Typical duration: 4-6 weeks, runs in parallel with material procurement.
4. Integration. The transformer, switchgear, and panels are mounted on the skid, and the cabling is terminated. Typical duration: 6-8 weeks.
5. Factory acceptance test (FAT). The integrated skid is run through the full routine test stack. Typical duration: 2-3 weeks.
6. Packing and shipping. The skid is wrapped, lashed, and loaded for road, rail, or sea transport. Typical duration: 1-2 weeks plus transit.
7. Site commissioning. The skid is installed on the prepared foundation, the cables are terminated, and the unit is energized. Typical duration: 5-10 days for a mobile substation, compared to 30-60 days for a permanent substation.

The end-to-end lead time is typically 5-8 months to FAT plus 1-3 months transport and 1-2 weeks commissioning. A buyer who plans backward from the mine power-on date sets the order date accordingly.

6. Site Commissioning — Why Mobile Cuts the Window from 30-60 Days to 5-10 Days

The site commissioning of a mobile substation is significantly shorter than a permanent substation because the integration testing is done at the factory, not at the site. A typical mobile substation commissioning is 5-10 days including cable termination, busbar connection, protection relay setting, oil processing (if applicable), and energization. A permanent substation typically takes 30-60 days from civil completion to energization because the equipment is installed piece-by-piece at the site and the integration tests run on the integrated system.

The commissioning matrix for a 132kV mobile substation typically covers five activity streams:

• Mechanical installation. Skid placement on the prepared foundation, anchor bolt tightening, cable tray alignment. Typical duration: 1-2 days.
• Electrical termination. HV cable termination, LV cable termination, control cable termination, grounding. Typical duration: 2-3 days.
• Protection relay setting. Overcurrent, differential, distance, and busbar protection settings per the utility's coordination study. Typical duration: 1-2 days.
• Oil processing (if applicable). Oil filling, vacuum, oil dielectric breakdown test. Typical duration: 1-3 days for oil-filled designs.
• Energization. Step-by-step energization from no-load to full-load, with the protection relays in service. Typical duration: 1 day.

A project owner who plans the site preparation (foundation, cable trenches, ground grid) for delivery a week before commissioning arrives gets the full benefit of the mobile format's short commissioning window.

7. Mine-Load-Driven MVA Sizing — Right-Sizing the Transformer

The MVA sizing of a 132kV mobile substation follows the mine load list. Typical mine loads include the primary crusher, the secondary crusher, the conveyor drives, the mill drives (SAG mill, ball mill), the camp power, the dewatering pumps, and the ventilation fans. The MVA selection sums the connected load, applies a diversity factor, and adds a contingency margin for mine expansion.

Typical MVA ranges for a 132kV mining mobile substation are 20 MVA, 30 MVA, 40 MVA, 50 MVA, and 60 MVA. For an open-pit mine with a 5,000-10,000 tpd mill, 30-50 MVA is the typical selection. For an underground mine with a smaller mill and tighter spatial constraints, 20-30 MVA is the typical selection.

The MVA selection also drives the impedance specification and the tap range. Typical impedance for a 132kV mining mobile substation is 10-12.5 percent, with a ±10 percent tap range on the HV side. The exact specification follows the connecting utility's grid code and the mine's short-circuit study.

8. Bulk Procurement Math for a 132kV Mobile Substation Order

Bulk procurement math for a 132kV mobile substation order is driven by three numbers: the unit price (which scales with MVA), the lead time (which dominates the schedule), and the site preparation cost (which is the buyer's scope). Walking through the math explains how mining project owners structure the order.

1. Unit price. The unit price for a 132kV, 30-50 MVA mobile substation typically falls in the six-figure range per unit. Larger 60+ MVA units approach the seven-figure range. The price includes the transformer, the HV and LV switchgear, the protection panels, and the skid integration.
2. Lead time. Typical lead time is 5-8 months to FAT plus 1-3 months transport plus 1-2 weeks commissioning. Total procurement window 6-11 months.
3. Site preparation cost. The site preparation (foundation, cable trenches, ground grid, perimeter fence) is the buyer's scope and is typically 15-25 percent of the mobile substation unit price. A buyer who plans the site preparation in parallel with the unit delivery gets the full benefit of the short commissioning window.
4. Spare parts and warranty. The spare parts package (spare bushings, spare relays, spare gaskets) typically adds 2-4 percent to the unit price.
5. Relocation and redeployment. For a mine where the load moves with the mine face, the mobile substation will be relocated multiple times during its service life. The buyer should budget for the relocation cost (transport permit, lifting, commissioning) at the initial procurement stage. A well-engineered skid frame supports 5-10 relocations over the unit service life without structural rework. Documentation package. The manufacturer should supply the as-built drawings, the test certificates, the operating and maintenance manual, and the spare parts list at the FAT stage. The documentation package is what the project owner uses to operate the mobile substation after the manufacturer leaves site. A missing documentation package at the FAT stage is a common dispute trigger that the project owner should address at the contract stage, not at the commissioning stage. Operator training. The manufacturer typically provides 3-5 days of operator training at the commissioning stage. The training covers the protection relay operation, the manual operation of the switchgear panels, the oil processing procedure (for oil-filled designs), and the emergency response. A project owner who plans the operator training in parallel with the commissioning gets the unit into service within the planned timeline.

A buyer who walks through these five steps with the supplier's quotation arrives at a total installed cost that the project finance team can sign off on, and at a delivery schedule that the mine construction team can plan around.
