MV Switchgear for Data Center Dual-Power Architecture: Arc Fault Protection and Busbar Rating Specifications

Data centers demand the highest reliability from their electrical infrastructure. A single power interruption can corrupt data, disrupt services for millions of users, and generate financial losses measured in thousands of dollars per second. The medium-voltage switchgear that distributes utility power to the data center's uninterruptible power supplies, transformers, and backup generators is the critical link between the external Power Grid and the internal IT load. Selecting the rightMV switchgear for data center dual-power architecture requires understanding voltage ratings, arc fault protection, busbar capacity, and the specific requirements of concurrent maintainability that Tier III and Tier IV data centers demand.

The architecture of data center power distribution has evolved significantly as computing densities have increased. Early data centers operated comfortably on single-feed utility power with backup generators. Modern hyperscale and colocation facilities require dual independent utility feeds, each capable of carrying the full data center load, with automatic transfer between feeds and the ability to maintain any single component without interrupting power to the IT equipment. The MV switchgear is where these two feeds converge, and its design determines whether the dual-power architecture delivers the reliability it promises.

1. Why Data Centers Require Dual-Power MV Switchgear Architecture

Dual-power architecture eliminates the single point of failure that single-feed designs create. When a utility transformer fails, a cable is damaged by construction equipment, or the utility performs scheduled maintenance on the distribution feeder, the data center loses its primary power source. Without a second independent feed, the facility relies entirely on backup generators until utility power is restored. Generator runtime is limited by fuel storage, and extended outages can exhaust fuel reserves before the utility recovers.

With dual-power architecture, two independent utility feeds connect to separate MV switchgear lineups within the data center. Each lineup includes incoming circuit breakers, metering, protection relays, and bus sections that can be independently isolated for maintenance. The two lineups are connected through a bus coupler or tie breaker that can transfer load from one feed to the other automatically or manually. Under normal operation, both feeds share the data center load. If one feed fails, the bus coupler closes and the remaining feed carries the full load while the failed feed is repaired.

The LV switchgear and box downstream of the MV switchgear distributes power to individual server rooms, cooling systems, and ancillary loads. The MV switchgear must be designed to interface seamlessly with the LV distribution system, with protection coordination that ensures a fault on the LV side does not unnecessarily trip the MV supply. Tianan's product range covers both MV and LV switchgear, allowing integrated protection coordination across the entire power distribution chain.

2. Arc Fault Protection: Internal Arc Classification per IEC 62271-200

Internal arc faults in MV switchgear are rare but catastrophic events. An arc fault occurs when insulation between phase conductors or between a phase conductor and ground fails, creating a high-energy electrical arc inside the switchgear enclosure. The arc generates temperatures exceeding 10,000 degrees Celsius, produces a pressure wave that can rupture the enclosure, and ejects hot metal and gas that can injure or kill personnel in the vicinity. Arc fault protection is not a feature that improves performance. It is a safety requirement that prevents equipment destruction and protects human life.

Internal arc classification (IAC) per IEC 62271-200 specifies the switchgear's ability to withstand and contain an internal arc fault. The classification includes accessibility type (A for installation in closed electrical stations, B for installation accessible to the general public), the rated short-time withstand current, and the arc duration. A switchgear classified IAC AFLR (arc fault in the rear, sides, and front) provides the highest level of protection for installations where personnel may be present near the switchgear.

Tianan MV switchgear incorporates arc fault containment through robust enclosure design, pressure relief channels, and fast-acting protection relays. The current transformers detect the sudden current increase associated with an arc fault and trip the circuit breaker within 50 to 100 milliseconds, limiting the arc energy and the resulting pressure rise. The enclosure is designed to withstand the peak pressure of this brief arc event without rupturing, directing the hot gases through designated exhaust channels to the outside of the building. For data center applications where the switchgear room may be adjacent to the IT equipment area, this containment capability is essential for protecting both personnel and equipment.

3. Busbar Rating Specifications for Data Center Loads

The busbar rating determines the maximum current that the switchgear can carry continuously without exceeding temperature limits. For data center applications, the busbar rating must be sufficient to handle the full connected load of the data center plus a margin for future expansion. A typical Tier III colocation data center with 10 MW of IT load at 12kV draws approximately 480A per phase on each utility feed. With a 25 percent safety margin for future expansion, the busbar rating should be at least 600A. Larger hyperscale facilities may require busbars rated at 1250A, 2500A, or even 4000A.

Tianan MV switchgear busbar ratings range from 630A to 4000A depending on the model. The KYN28A-12 series, designed for 12kV and 24kV applications, supports rated currents up to 4000A with short-time withstand currents up to 50kA for 3 seconds. The XGTD gas-insulated series offers rated currents from 630A to 2500A in a more compact footprint. The choice between these series depends on the data center's load requirements, available floor space, and the preference for gas-insulated or air-insulated technology.

Busbar material and construction also affect performance. Copper busbars offer lower resistance and higher current-carrying capacity than aluminum for the same cross-section, but at higher material cost. Tianan switchgear uses copper busbars as standard for MV applications, with silver-plated contact surfaces at connection points to minimize contact resistance and prevent oxidation over the equipment lifetime. The busbar joints use high-strength bolts with controlled torque to ensure consistent contact pressure through thermal cycling.

4. Gas-Insulated vs. Air-Insulated: Choosing the Right Technology

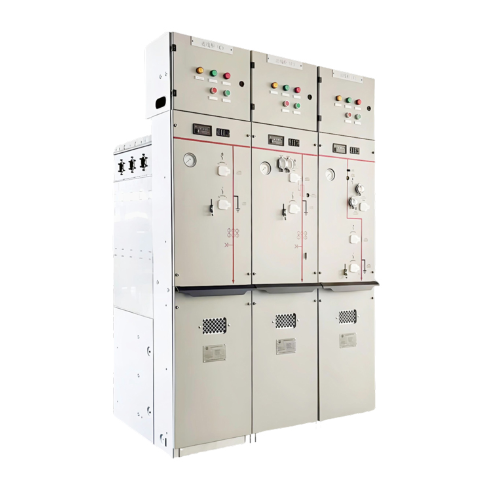

Gas-insulated switchgear (GIS) uses SF6 gas as the insulation medium between live conductors and the grounded enclosure. SF6 has approximately three times the dielectric strength of air at the same pressure, allowing significantly more compact designs. The XGTD series from Tianan achieves switchgear footprints 30 to 50 percent smaller than equivalent air-insulated designs, making GIS the preferred choice for data centers where floor space cost is high. The sealed gas enclosure also eliminates the need for the maintenance-intensive air clearance inspections that air-insulated switchgear requires.

Air-insulated switchgear (AIS) uses ambient air as the insulation medium, requiring larger clearances between conductors and between conductors and grounded structures. The KYN28A and KYN61 series from Tianan provide air-insulated configurations with withdrawable circuit breakers that support the concurrent maintainability requirements of Tier III and Tier IV data centers. The withdrawable design allows a circuit breaker to be removed from the switchgear while the bus remains energized and the load is transferred to the alternative feed.

For data center dual-power architecture, the primary distribution switchgear often uses GIS to minimize footprint, while secondary distribution may use AIS where space constraints are less critical. Tianan offers both technologies at all voltage levels, allowing the data center designer to select the optimal technology for each application point in the power distribution system.

5. Protection Relay Coordination and Selectivity

Protection relay coordination ensures that a fault at any point in the data center power distribution system is cleared by the nearest upstream breaker, disconnecting the minimum amount of equipment necessary. A fault on a single server room feeder should trip only that feeder's breaker, not the main MV switchgear breaker that supplies the entire data center. This selectivity requires careful coordination of current thresholds, time delays, and trip curves across all protection devices from the utility connection to the individual server rack.

Tianan MV switchgear accepts digital protection relays from major manufacturers including ABB, Siemens, Schneider Electric, and GE. The relay bay in the switchgear is designed to accommodate standard relay form factors with terminal blocks for CT and PT connections, trip circuits, and communication interfaces. The protection scheme for a data center typically includes overcurrent protection (50/51), earth fault protection (50N/51N), differential protection (87T) for transformer feeders, and busbar differential protection (87B) for the main bus sections.

Communication between protection relays and the data center power management system uses standard protocols such as IEC 61850 or Modbus TCP. This integration allows the power management system to monitor breaker status, current readings, power measurements, and alarm conditions in real time, providing the visibility that data center operators need to manage power distribution proactively.

6. Installation and Commissioning for Critical Infrastructure

Installing MV switchgear in a data center requires specialized skills and equipment that differ from general electrical contracting. The switchgear must be positioned on a level, load-rated floor with adequate clearance for cable termination, maintenance access, and arc fault exhaust. Cable terminations for MV switchgear require trained cable jointers using heat-shrink or cold-shrink termination kits rated for the operating voltage. Incorrect cable termination is a leading cause of MV switchgear failures, creating partial discharge sites that degrade insulation over time.

Commissioning includes dielectric withstand testing of the busbar and cable terminations, contact resistance measurement of all bolted joints, protection relay testing with primary injection to verify trip thresholds and timing, and functional testing of all auxiliary circuits including indication, interlocking, and communication. Tianan provides commissioning support for overseas installations, with engineers experienced in international power distribution standards and local regulatory requirements.

For data center projects in developing markets where local electrical infrastructure may not meet international standards, Tianan's export experience across Asia, Africa, the Middle East, and South America provides practical guidance on adapting switchgear specifications to local conditions while maintaining the reliability that data center operators require.

7. Total Cost of Ownership and Lifecycle Management

The purchase price of MV switchgear represents a fraction of its total cost of ownership over a 25 to 30-year lifecycle. Installation, commissioning, maintenance, and eventual replacement or refurbishment account for the majority of lifecycle cost. Gas-insulated switchgear reduces maintenance cost by eliminating the air clearance inspections and cleaning that air-insulated switchgear requires, but introduces the cost of gas monitoring and periodic gas replacement if leaks develop.

Tianan MV switchgear is designed for minimal maintenance through the use of sealed vacuum circuit breakers that do not require contact replacement during normal service life, lubrication-free mechanism design, and corrosion-resistant enclosure materials. The circuit breaker mechanism life exceeds 10,000 operations for the vacuum interrupter and 30,000 operations for the operating mechanism, far exceeding the number of operations that a data center circuit breaker typically experiences over its service life.

Spare parts availability is a consideration for data center operators in remote locations. Tianan maintains spare parts inventory and provides technical documentation for routine maintenance procedures, allowing local maintenance teams to perform scheduled inspections without factory support. For more complex interventions, Tianan engineers can provide on-site support through their international service network.
