Smart Switchgear Supplier Evaluation: Sensors, IEC 61850 Integration and Cybersecurity Checks

If you are a utility or large-industrial procurement team shorting suppliers of smart switchgear in 2026, the question is no longer whether the panel can interrupt fault current at the rated voltage. That part is settled by IEC 60947-2 and GB 14048.2 testing, and almost every Asian switchgear manufacturer on your shortlist will pass. The harder question is whether the supplier can deliver the sensor stack, the IEC 61850 conformance, and the cybersecurity evidence that a modern substation automation project requires.

This is a working brief for the procurement side of that question. We walk through a 5-dimension scorecard that scores each supplier on switching capacity, sensor integration, IEC 61850 conformance, IEC 62443 cybersecurity posture, and the documentation and witness-test evidence bundle. We look at what "sensor configuration" really means in a TANW1-class intelligent breaker, how IEC 61850 Edition 2.x GOOSE and MMS stacks actually integrate with the IED layer, and what the IEC 62443 SL-1 to SL-4 cybersecurity levels look like at the product level. We finish with the documentation and the supplier-evaluation checklist that utility-grade procurement teams can put in front of any shortlist vendor in 2026.

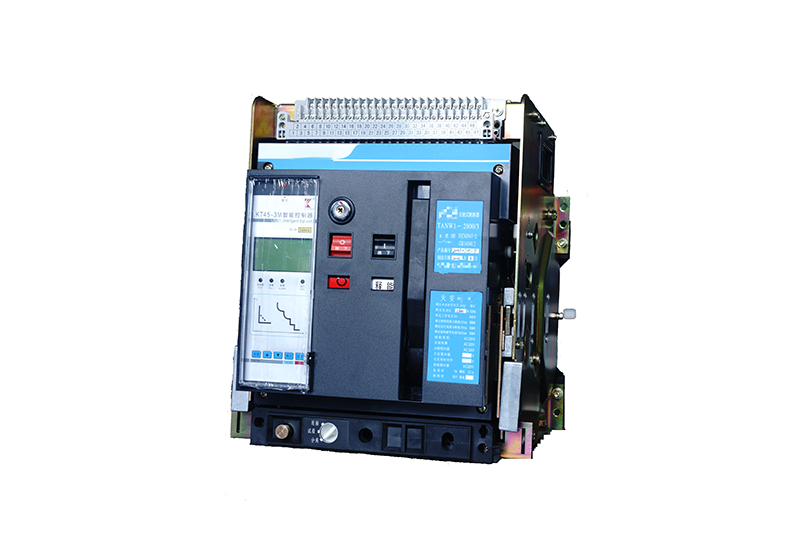

Source: Ningbo Tianan Imp. & Exp. Co., Ltd. - TANW1 series product page

1. Why Smart Switchgear Supplier Evaluation Now Goes Beyond the Envelope Drawing

The traditional switchgear procurement shortlist has historically depended on the interrupting rating in kA at the rated voltage, the form factor against the one-line diagram, and the manufacturer's installed base in the buyer's geography. The interrupting rating still matters - the panel has to interrupt the fault current that the rest of the network can deliver, and a 50 kA panel cannot be replaced by a 35 kA panel under any negotiated value engineering. But the modern utility procurement shortlist adds two more axes that the envelope drawing cannot capture: the IEC 61850 conformance profile and the IEC 62443 cybersecurity posture.

The driver is the substation automation architecture itself. A modern substation no longer treats protection and control as a one-way signal from instrument transformers through a discrete relay to a trip coil. The protection IED is a network endpoint. The breaker is a controlled actuator on that network. The trip coil and the closing coil are driven by IEC 61850 GOOSE messages, not by hard-wired inter-relay logic. The SCADA interface runs IEC 61850 MMS reports, not a string of DNP3 or Modbus registers. Cybersecurity is therefore a continuous design concern, not a perimeter concern. A supplier without a documented IEC 62443 development process cannot ship product into that architecture regardless of the interrupting rating.

The other shift is the procurement timeline. Utility-grade projects now run 9 to 18 months from specification to commissioning. The bottleneck is rarely the manufacturing lead time for the panel itself, which sits in the 2 to 4 month range. The bottleneck is the documentation, conformance, and witness-test cycle - the bundle that proves the panel meets IEC 61850 Edition 2.x, that the IED firmware is IEC 62443-capable, and that the supplier has the project references to back up both claims. The supplier-evaluation checklist at the end of this brief is built around that documentation-and-evidence cycle, not around the panel schedule.

For a procurement team running a substation upgrade or a greenfield Industrial Substation in 2026, the shortlist should therefore include vendors who can document the 5-dimension scorecard we walk through below. The envelope drawing and the form factor matter; they are dimensions 1 and 2. The IEC 61850 conformance, the IEC 62443 SL target, and the documentation bundle matter equally; they are dimensions 3, 4, and 5.

2. The 5 Dimensions That Make Up a Real Smart Switchgear Scorecard

The five dimensions below are the working scoring framework we use to shortlist smart switchgear vendors. Each dimension maps to a question the procurement team can put in front of the supplier and a document the supplier should be able to produce on request. Vendors that score consistently across all five dimensions typically clear the technical evaluation phase of a utility-grade tender; vendors that score on one or two dimensions only typically do not.

The five dimensions are not equally weighted across project types. A greenfield 132 kV Transmission Substation in a regulated market typically weights the IEC 62443 dimension above the rest, because the buyer is bound by national cybersecurity regulations (NERC CIP in North America, NIS2 in Europe, GB/T 22239 in China, and similar regimes elsewhere). A retrofit upgrade on a brownfield industrial site typically weights the documentation and witness-test dimension, because the buyer is matching the existing protection scheme. The scorecard is therefore read with project-specific weighting in mind, but the five dimensions themselves stay fixed.

The scorecard pattern is consistent with the procurement practices at EPRI's cybersecurity and grid-modernisation research programs and with the published frameworks from EPRI's cybersecurity center. Vendor-supplied documentation that maps cleanly to those frameworks is significantly easier to clear through the technical-evaluation phase of a utility-grade tender.

3. Sensor Configuration: CTs, PTs, and Intelligent Controllers

Sensor configuration in a smart switchgear panel is no longer the binary "with CT or without CT" decision it was a decade ago. The modern configuration question is: which CT, which PT, which intelligent controller, and what is the trip-curve signature under managed firmware. The supplier's sensor configuration answer should cover four items in writing: the CT ratio and accuracy class, the PT ratio and class, the intelligent-controller model and firmware version, and the four-remote communication interface.

The TANW1 series intelligent universal LV circuit breaker is a representative LV-breaker-class implementation. The published spec covers AC 50/60Hz, rated voltages of 400V and 690V, rated currents from 630A to 6300A, four-pole construction for three-phase four-wire or three-phase five-wire systems, and the protective functions overload / under-voltage / short-circuit / single-phase grounding. The panel has an open communication interface supporting four-remote control for distribution-automation integration. The form factor is a 2000A / 3200A / 4000A / 6300A shell level, with derating for ambient temperature above 40 degrees C and for altitudes above 2000 m (which the buyer should confirm with the supplier if the project site exceeds those limits).

For the procurement team, the question is not whether the supplier lists CTs and PTs on the datasheet. Almost every Asian switchgear manufacturer lists the same CT/PT catalog. The question is whether the supplier can confirm the specific accuracy class, the specific burden, and the specific firmware version of the intelligent controller that will ship in the panel. The EPRI cybersecurity initiative press releases repeatedly stress that documented sensor-configuration evidence - not datasheet claims - is the differentiator between vendors at the technical-evaluation phase.

4. IEC 61850 Integration: GOOSE, MMS, and SCL Files

IEC 61850 is the dominant substation communication standard globally. The standard has gone through several editions, and the 2026 procurement question is not "do you support IEC 61850" but "which edition, which logical nodes, and which configuration files do you deliver." The supplier's IEC 61850 evidence should cover: the edition (1.0, 2.0, 2.1, or 2.2), the IED Capability Description (ICD) file, the Substation Configuration Description (SCD) file, the GOOSE message catalogue, and the MMS report catalogue.

For utility-grade tenders, the IEEE 1613 family is the second axis of evidence. IEEE 1613 covers the environmental profile for substation networking equipment, and IEEE 1613.1 covers the communications profile. The IEEE 1613 standard for environmental testing of substation networking equipment and the IEEE 1613.1 communications profile standard are not the same as IEC 61850 - they cover the electromagnetic compatibility, surge withstand, and deterministic Ethernet profile required at the network layer. A switch or IED that has not been qualified to IEEE 1613 / 1613.1 is not suitable for the substation environment regardless of the IEC 61850 stack.

The procurement team should request both the IEC 61850 evidence bundle and the IEEE 1613 evidence bundle from every supplier on the shortlist. A common procurement mistake is to confirm IEC 61850 conformance at the IED level and then discover at the FAT stage that the network switch is not IEEE 1613-qualified. The supplier-evaluation checklist at the end of this brief separates the two compliance axes for exactly this reason.

The mapping from a Chinese vendor's traditional four-remote stack (60870-5-104, Modbus, DNP3) to IEC 61850 is not automatic. Most IEC 61850 gateways on the market implement the protocol conversion at the supervisory layer, not at the IED layer. The question to ask the supplier during the evaluation phase is: do you ship the IED with native IEC 61850 GOOSE and MMS, or do you ship a protocol-conversion gateway that bridges from your four-remote stack to 61850? Native IED support is the answer most utility-grade tenders are looking for in 2026.

5. Cybersecurity Baseline: IEC 62443 SL-1 to SL-4

IEC 62443 is the dominant industrial-automation cybersecurity standard globally. The standard is structured around Security Levels (SL-1 through SL-4) that map to escalating threat models. For smart switchgear and substation-automation procurement, the practical baseline is SL-2, with SL-3 for transmission substations and critical infrastructure.

The supplier's IEC 62443 evidence should cover two documents: the IEC 62443-4-1 process document (which describes the supplier's secure development lifecycle), and the IEC 62443-4-2 capability statement (which describes the security capabilities of the IED firmware itself). The ISA/IEC 62443 series of standards on the ISA Standards page documents the framework, and a supplier who can map product security to a specific SL target on request is competitive on a global tender.

The MITRE ATT&CK for ICS matrix is the complementary threat-intelligence framework that many cybersecurity teams use alongside IEC 62443. The MITRE ATT&CK Impair Process Control tactic, the MITRE ATT&CK Execution tactic, the MITRE ATT&CK Evasion tactic, and the MITRE ATT&CK Discovery tactic are the four tactics most commonly cited in substation- and industrial-automation threat models. The MITRE ATT&CK Network Segmentation mitigation is the most commonly cited defensive measure. A supplier who can map their IEC 62443 capabilities to specific ATT&CK for ICS mitigations is one step ahead on the technical-evaluation phase of a tender.

For a Chinese switchgear manufacturer, the IEC 62443 compliance pathway is jurisdiction-neutral. The standard is not a European or North American standard per se - it is an international IEC series. The question for the supplier is whether they have invested in the certification process, the third-party test reports, and the SDLC controls. The IEC 62443 series on the IEC webstore is the authoritative reference.

6. The Documentation and Conformance Evidence Audit

The fifth dimension of the scorecard is the documentation and conformance evidence audit. This is the procurement step that typically takes the longest and the procurement step where shortlist vendors most often drop out. The audit centres on the following questions: does the supplier have the project references to back up the four-dimension claims, can the supplier run a factory-acceptance test (FAT) on the buyer's schedule, and does the supplier have the third-party test certificates the buyer needs to file with the regulator.

The EPRI cybersecurity research results archive documents the audit patterns that large North American utilities apply at the supplier-evaluation phase. Most of the audit patterns translate directly to procurement practice outside North America, with adjustments for the buyer's national cybersecurity regulation. The audit is the highest-leverage gate to run early in the procurement cycle; vendors who fail the audit early on save the buyer a quarter of a year of downstream contract negotiation.

For Chinese switchgear manufacturers exporting to utility-grade tenders in Africa, the Middle East, Southeast Asia, or South America, the documentation-and-conformance dimension is often the dimension that closes the technical-evaluation phase. A supplier who can demonstrate a multi-year track record of reference projects in the buyer's region, with the matching certifications, is typically the supplier who wins the tender. A supplier who can demonstrate only the panel-level IEC 60947-2 type-test report typically does not.

7. What Tianan Provides in the Smart Switchgear Category

The smart switchgear category page at Tianan Overseas lists the manufacturer's smart switchgear product line alongside the HV & MV switchgear, LV switchgear, mobile substation, substation, and transformer categories. The TANW1 series intelligent universal LV circuit breaker is the LV breaker that anchors the smart-switchgear line. The published specification covers the parameters we walk through in the sensor-configuration dimension - AC 50/60Hz, rated 400V/690V, currents 630A-6300A, IEC 60947-2 and GB 14048.2 conformance, intelligent protection functions, open four-remote interface for distribution-automation integration.

The Tianan factory tour page documents the panel-assembly bays and the test bays used for the factory-acceptance test phase. The factory has been operating under the wider Tianan group brand since 2003 and has built a multi-decade project reference list including partners such as GE, Siemens, Toshiba, and EEP, with sales networks across Southeast Asia, the Middle East, Africa, Europe, North America, South America, and Oceania.

For the procurement team's evaluation, the practical Tianan-side evidence that answers the five-dimension scorecard is:

• Switching capacity: IEC 60947-2 and GB 14048.2 type-tested at the published ratings, form factors 2000A / 3200A / 4000A / 6300A at the LV breaker level.
• Sensor integration: CT and intelligent controller configured at the project-specification stage, with derating tables published for ambient temperature and altitude and a four-remote interface that integrates with the buyer's distribution-automation stack.
• IEC 61850 conformance: The open communication interface documented on the TANW1 datasheet supports the protocol-conversion pathway from the four-remote stack to IEC 61850. The project-specific ICD and SCD files are produced during the engineering phase rather than shipped as a stock product.
• IEC 62443 cybersecurity: Project-specific. The supplier-side IEC 62443 capability statement is documented during the technical-evaluation phase. The buyer should request it directly rather than assuming it is in the standard product bundle.
• Documentation and FAT evidence: Multi-decade project references across the seven-region sales network. FAT protocols are produced at the project-specific engineering stage and signed off during the pre-shipment inspection at the Ningbo panel-assembly bays.

This evidence bundle is the realistic starting point for a procurement-team evaluation of Tianan against the 5-dimension scorecard. Buyers who need a deeper IEC 62443 capability statement, an ICD file for the IED layer, or a FAT protocol template should request those documents directly during the technical-evaluation phase rather than waiting for the contract negotiation phase.
