Transformer TCO Calculation: Using Loss Capitalization Factors to Compare No-Load and Load Loss Bids

1. Why Transformer Procurement Needs a TCO Bid Comparison (Not Just Capital Cost)

Capital cost is the visible part of the iceberg. For a 12.5 MVA 110 kV transformer in continuous duty, the no-load loss and load loss over a 25-year evaluation period typically accumulate to more than the capital cost — sometimes 2-3x the capital cost depending on the local electricity tariff. A 1000 kVA 10 kV Distribution Transformer with no-load loss of 850 W and load loss of 8,500 W at 50% average load factor, operating at an industrial tariff of $0.08/kWh over 25 years, will consume approximately 1.69 million kWh — worth $135,000 in lifetime energy cost, versus a typical capital cost of $8,000-$12,000. Capital cost is less than 10% of TCO in this scenario.

The implication for procurement: comparing bids on capital cost alone will frequently select the wrong transformer. A low-bid transformer with 30% higher no-load loss may appear cheaper by $2,000-$3,000 in capital cost but cost the buyer $30,000-$50,000 more over the transformer's life. TCO bid comparison using loss capitalization factors corrects this bias by converting all future energy costs into a present-value lump sum that can be added to the capital cost and compared across bidders on a single normalized basis.

The Tianan power transformer lineup offers S11 through S22 efficiency classes with documented P₀ and Pₖ values per IEC 60076-1 reference conditions, and the 10-35 kV oil-immersed supply line provides typical P₀/Pₖ figures for TCO comparison quotations. Submit a bid loss-figure request for a TCO check against your A/B factors.

2. What Are Loss Capitalization Factors A and B (IEEE / IEC Conventions)

The A and B factors convert future energy costs into present value for transformer TCO comparison. The conventions differ slightly between IEEE and IEC frameworks but converge on the same fundamental approach.

A factor (no-load loss capitalization): The present value of 1 kW of no-load loss sustained 24/7 over the evaluation period. The formula is:

A = tariff ($/kWh) × 8,760 h/year × annuity factor over N years at discount rate d, with tariff escalation e

For a 25-year evaluation period at 5% discount rate and 2% tariff escalation, the annuity factor is approximately 18.5. At $0.08/kWh tariff, this gives A = 0.08 × 8,760 × 18.5 = $12,960/kW if tariff is held flat, or $0.08 × 8,760 × 23.4 = $16,400/kW with 2% annual escalation. In practice, A values range $2,500-$6,500/kW for typical procurement because tariff and discount assumptions vary, but the formula is the standard.

B factor (load loss capitalization): The present value of 1 kW of load loss at rated load, scaled by the load factor squared to reflect actual operating duty. The formula is:

B = tariff × 8,760 × annuity factor × Load Factor²

The load factor squared reflects the I²R physics of copper loss — at 50% average load factor, the load loss contribution is reduced to 25% of rated load loss. B values are therefore typically 50-75% lower than A values at the same tariff (see Transformers Magazine on loss capitalization for the IEEE / IEC derivation).

3. The TCO Formula: Capital Cost + (A × P₀) + (B × Pₖ × LF²)

The TCO formula combines the capital cost (one-time, at year 0) with the capitalized loss cost (present value of 25 years of energy loss) into a single comparable figure across competing bids. The full formula is:

TCO = Capital Cost + A × P₀ + B × Pₖ × LF²

Where:

• Capital Cost = ex-works price + sea freight + insurance + installation + commissioning (typically quoted as CIF + erection)
• P₀ = no-load loss in kW (measured at rated voltage per IEC 60076-1)
• Pₖ = load loss in kW at rated current, corrected to 75°C reference temperature
• LF = average load factor (annual energy throughput ÷ nameplate capacity ÷ 8,760 hours)
• A, B = loss capitalization factors from the buyer or from the formula above

For a 1000 kVA 10 kV transformer with P₀ = 0.85 kW and Pₖ = 8.5 kW, capital cost $10,000, A = $4,000/kW, B = $1,200/kW, LF = 0.5, the TCO calculation is:

TCO = $10,000 + 4,000 × 0.85 + 1,200 × 8.5 × 0.25 = $10,000 + $3,400 + $2,550 = $15,950

In this example, the no-load loss contributes 21% of TCO and the load loss contributes 16% — together the loss contribution is 37% of TCO, versus 63% for capital cost. The TCO number allows direct comparison against any competing bid (see Transformer Technology loss capitalization primer for the formula derivation and worked industry examples).

4. Reference A and B Values: Utility vs Industrial vs Infrastructure Bidding

The A and B factors depend on the buyer's tariff structure, discount rate, evaluation period, and tariff escalation assumption. Reference values for the three main procurement categories are:

The data center category has the highest A and B values because electricity tariffs are typically higher ($0.10-$0.15/kWh) and the evaluation period is shorter (15-20 years vs 25-30 years for utilities). The utility-scale developing market category has the lowest A values because tariffs are typically lower ($0.04-$0.08/kWh) and discount rates are higher (8-10% reflecting local capital costs). The Reinhausen loss capitalization reference provides additional context for European utility procurement.

For a buyer without published A/B values, the conservative approach is to use the mid-point of the relevant procurement category above, run sensitivity at ±25% on A and ±50% on B, and identify the bid that wins across all scenarios — the "robust winner."

5. Worked TCO Example 1: Comparing Two 1000 kVA 10 kV Bids

Scenario: A utility buyer in Southeast Asia is comparing two 1000 kVA 10 kV oil-immersed distribution transformer bids. The buyer's reference parameters are A = $3,500/kW, B = $1,000/kW, evaluation period 25 years, discount rate 8%, tariff escalation 3%, average load factor 50%.

TCO calculation for Bidder A:

• Capital cost: $9,500
• Capitalized no-load loss: 3,500 × 1.15 = $4,025
• Capitalized load loss: 1,000 × 10.5 × 0.25 = $2,625
• TCO (Bidder A) = $9,500 + $4,025 + $2,625 = $16,150

TCO calculation for Bidder B:

• Capital cost: $11,200
• Capitalized no-load loss: 3,500 × 0.95 = $3,325
• Capitalized load loss: 1,000 × 7.6 × 0.25 = $1,900
• TCO (Bidder B) = $11,200 + $3,325 + $1,900 = $16,425

Result: Bidder A wins by $275 (1.7% of TCO) despite being the lower-efficiency transformer. At this load factor (50%) and tariff, the capital cost advantage of the S11 transformer outweighs the loss disadvantage. The Siemens Ecodesign Tier comparison leaflet shows the equivalent loss values for EU jurisdictions.

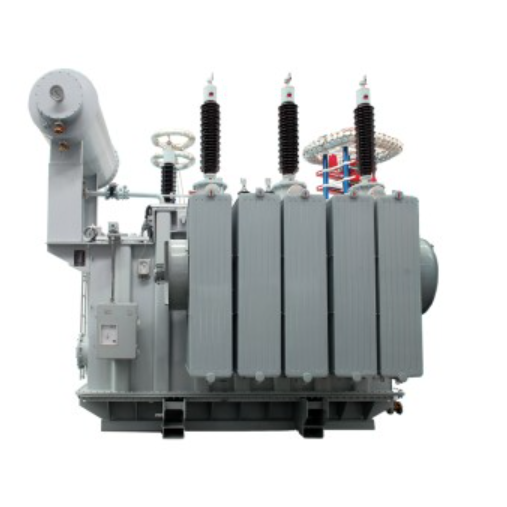

6. Worked TCO Example 2: 12.5 MVA 110 kV On-Load Tap-Changer Bids

Scenario: A transmission utility in the Middle East is comparing two 12.5 MVA 110/33 kV on-load tap-changer (OLTC) transformer bids. Buyer's parameters: A = $4,500/kW, B = $1,400/kW, 30-year evaluation, 6% discount, 2% tariff escalation, 65% load factor (typical for transmission step-down).

TCO (Bidder A) = $185,000 + 4,500 × 11.2 + 1,400 × 78 × 0.4225 = $281,531

TCO (Bidder B) = $215,000 + 4,500 × 8.5 + 1,400 × 62 × 0.4225 = $289,923

Bidder A wins by $8,392 (3.0%). However, the S22 transformer saves $21,600 in lifetime energy costs. At 75% load factor, the load loss dominates and the S22 wins — see Section 8 for sensitivity analysis.

7. How to Read P₀ and Pₖ on a Bid Sheet (Efficiency Class Translation)

A typical transformer bid sheet includes the manufacturer's guaranteed P₀ and Pₖ values. To use these in TCO calculations, the buyer must verify the reference conditions and translate the values into the efficiency class framework:

1. Confirm P₀ reference: P₀ must be measured at rated voltage and rated frequency on the rated tap. Some manufacturers quote P₀ at 110% rated voltage (worst-case); others at 100% rated voltage (typical operating). Confirm and standardize before comparison.
2. Confirm Pₖ reference temperature: Pₖ must be corrected to 75°C reference temperature per IEC 60076-1. Some manufacturers quote at 75°C, others at 120°C (Class F insulation reference). The difference between 75°C and 120°C for copper winding resistance is approximately 16% (Pk_75 ≈ Pk_120 × 0.86).
3. Translate to efficiency class: Match the P₀ value against the GB 20052, IEC 60076-20, or EU 548/2014 Tier 1 / Tier 2 limit for the rating. A 1000 kVA 10 kV unit with P₀ = 850 W meets the S22 class; P₀ = 950 W meets S20; P₀ = 1,050 W meets S13; P₀ = 1,150 W meets S11 (see EU Regulation 548/2014 Tier 1/2 framework).
4. Request loss guarantee: The bid sheet should include a loss guarantee with tolerance (typically ±5%) and compensation formula if the measured loss exceeds the guaranteed value. Bid sheets without loss guarantees should be downgraded in the TCO comparison or qualified with a contingency.
5. Verify impedance voltage Uk%: Uk% is typically 4-6% for distribution transformers and 8-12% for Large Power Transformers. The value must match the buyer's system short-circuit study; mismatched Uk% will cause coordination issues with downstream protection equipment.

The Tianan loss-guarantee process documents the standard P₀/Pₖ test conditions, the ±5% tolerance, and the warranty compensation formula. Each Tianan bid includes a type-test report from an accredited third-party lab (TUV, SGS, BV, or KEMA) plus the factory acceptance test report.

8. Sensitivity Analysis: How Load Factor Changes the Winner

The TCO comparison is sensitive to the load factor assumption. The same two 12.5 MVA 110 kV bids from Worked Example 2 produce different winners at different load factors:

The sensitivity table shows Bidder B (S22) wins at 50%, 75%, and 100% load factors, while Bidder A (S11) wins at 25% and 65% load factors. The robust conclusion is that Bidder B is the better TCO choice for most operating scenarios — except where the transformer is consistently underloaded below 30% of nameplate, which is uncommon for 12.5 MVA transmission transformers. This is why most transmission utilities specify S20 or S22 class for new purchases despite the higher capital cost.

The standard procurement practice is to run sensitivity at three load factors (25%, 50%, 75%) and two discount rates (5%, 8%) to identify the robust winner across operating scenarios. The robust winner is the bid that wins in at least 4 of 6 scenarios.

9. The Hidden Loss Cap Pitfalls: PF, Duty Cycle, Discount Rates, Cooling

Five common pitfalls can invalidate a TCO comparison if not addressed:

1. Power factor correction: The load loss Pₖ at rated current is for the rated power factor (typically 0.8). If the actual load operates at 0.95 PF, the actual load loss is reduced by approximately 16% (because Pₖ ∝ 1/PF² for the same kVA load). Confirm the PF assumption with each bidder.
2. Duty cycle (not just load factor): A transformer serving a data center runs 24/7 at 50% average load. A transformer serving a shopping mall runs 14 hours/day at 40% load. The annual energy throughput is similar, but the no-load loss contribution differs because of the differing on-load hours. Calculate the actual annual energy loss based on the duty profile.
3. Discount rate selection: A discount rate that is too low overstates the present value of future losses (favors lower-loss transformers). A discount rate that is too high understates future losses (favors lower-capital-cost transformers). Use the buyer's WACC or regulatory cost of capital, not the general inflation rate.
4. Cooling type: ONAN (oil natural air natural) ratings assume 60 K top-oil rise and 65 K winding rise. ONAF (oil natural air forced) ratings at 1.15x nameplate capacity assume the same temperature rise with fans running. If the buyer operates the transformer continuously at ONAF, the load loss is the same as ONAN but at 15% higher throughput — this affects the load factor calculation.
5. Tap-changer position losses: OLTC transformers at non-rated tap positions have higher no-load loss (because the flux density increases or decreases). For OLTC transformers operating at -5% or +5% taps for grid voltage regulation, the no-load loss can be 5-10% higher than the rated-tap value. Confirm the tap position assumption.

The IEC IEC 60076-20 energy performance framework addresses these pitfalls in Annex A by providing standardized load profile assumptions and reference conditions for TCO calculation.

10. Tianan Loss Cap Worksheet: 7 Inputs for a TCO Comparison Quotation

For a side-by-side TCO comparison quotation against your existing bids, the Tianan engineering team requires seven inputs. Submit these through the contact form and the team will return a TCO comparison quotation within 2-3 business days:

1. Rated kVA and voltage class (e.g., 12.5 MVA 110/33 kV OLTC, or 1000 kVA 10/0.4 kV distribution)
2. A and B factors or alternative (e.g., A = $4,500/kW, B = $1,400/kW, 25-year evaluation, 8% discount, 3% tariff escalation — or a different set per your utility practice)
3. Load factor and duty cycle (e.g., 65% average LF, 24/7 continuous duty for transmission; or 40% LF, 14 hours/day for commercial)
4. Efficiency class target (e.g., S11 minimum, S13 preferred, S20 for high-duty, S22 for lifecycle-cost-priority tenders)
5. Reference temperature for Pₖ (75°C standard per IEC 60076-1, or 120°C if Class F insulation)
6. Cooling type preference (ONAN only, or ONAF-ready for 1.15x nameplate capacity)
7. Loss guarantee tolerance (standard ±5%, or tighter ±3% if required by the buyer's tender specification)

The Tianan loss-guarantee process and warranty terms are documented at the audit process page. For tender-specific TCO comparison, the engineering team can provide a side-by-side P₀ / Pₖ / TCO worksheet matching your bid format, typically within 2-3 business days of receiving the seven inputs.
